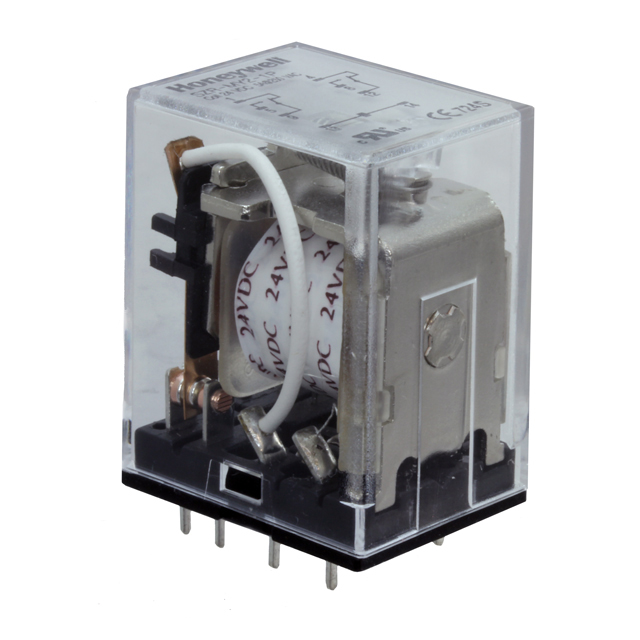

SZR-MY2-1P-DC24V

Active

Honeywell Sensing and Productivity Solutions

RELAY GEN PURPOSE DPDT 5A 24V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

RELAY GEN PURPOSE DPDT 5A 24V

Technical Specifications

Parameters and characteristics for this part

Part	Contact Form	Coil Voltage	Contact Rating (Current)	Relay Type	Must Operate Voltage	Contact Material	Must Release Voltage	Mounting Type	Coil Current	Release Time	Coil Type	Termination Style	Coil Resistance	Operate Time	Approval Agency	Switching Voltage	Load - Max Switching
Honeywell Sensing and Productivity Solutions SZR-MY2-1-AC24V	DPDT (2 Form C)	24 VAC	5 A	General Purpose	18 VAC	Silver Cadmium Oxide (AgCdO)	7.2 VAC	Socketable	133 mA	20 ms	Non Latching	Plug In	180 Ohms	20 ms	CE CSA UR	125 VDC 250 VAC	625 W 1250 VA
Honeywell Sensing and Productivity Solutions SZR-MY2-N1-AC24V
Honeywell Sensing and Productivity Solutions SZR-MY2-1P-DC24V	DPDT (2 Form C)	24 VDC	5 A	General Purpose	18 VDC	Silver (Ag)	2.4 VDC	Through Hole	36.9 mA	20 ms	Non Latching	PC Pin	650 Ohms	20 ms	CE CSA UR	125 VDC 250 VAC	625 W 1250 VA
Honeywell Sensing and Productivity Solutions SZR-MY2-1-DC12V	DPDT (2 Form C)	12 VDC	5 A	General Purpose	9 VDC	Silver (Ag)	1.2 VDC	Socketable	75 mA	20 ms	Non Latching	Plug In	160 Ohms	20 ms	CE CSA UR	125 VDC 250 VAC	625 W 1250 VA
Honeywell Sensing and Productivity Solutions SZR-MY2-1P DC24V-E	DPDT (2 Form C)	24 VDC	5 A	General Purpose	18 VDC	Silver (Ag)	2.4 VDC	Through Hole	36.9 mA	20 ms	Non Latching	PC Pin	650 Ohms	20 ms	CE CSA UR	125 VDC 250 VAC	625 W 1250 VA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay DPDT (2 Form C) 24VDC Coil Through Hole
