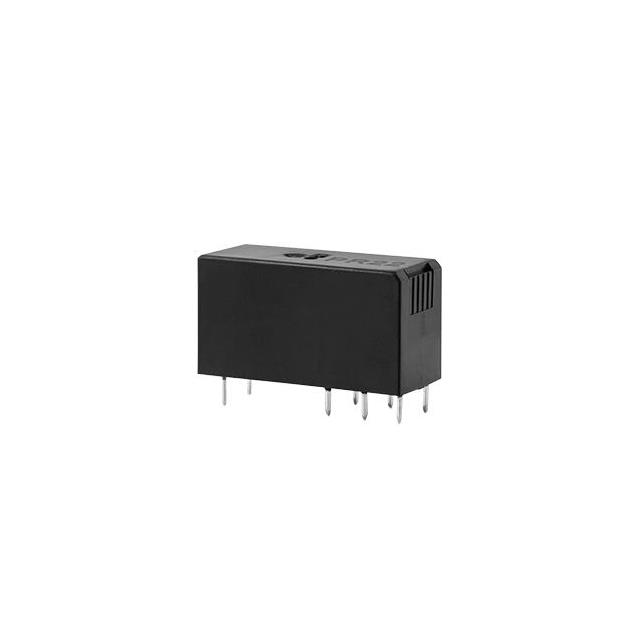

PR22-12V-400-1C
ActiveCUI Devices
RELAY GEN PURPOSE SPDT 16A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PR22-12V-400-1C
ActiveCUI Devices
RELAY GEN PURPOSE SPDT 16A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PR22-12V-400-1C |
|---|---|
| Coil Current | 33.3 mA |
| Coil Resistance | 360 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Alloy |
| Contact Rating (Current) | 16 A |
| Load - Max Switching | 7040 VA, 1920 W |
| Mounting Type | Through Hole |
| Must Operate Voltage | 8.4 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 10 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 5 ms |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.84 | |
| 10 | $ 1.73 | |||
| 25 | $ 1.53 | |||
| 50 | $ 1.46 | |||
| 100 | $ 1.38 | |||
| 250 | $ 1.35 | |||
Description
General part information
PR22-12V Series
General Purpose Relay SPDT (1 Form C) 12VDC Coil Through Hole
