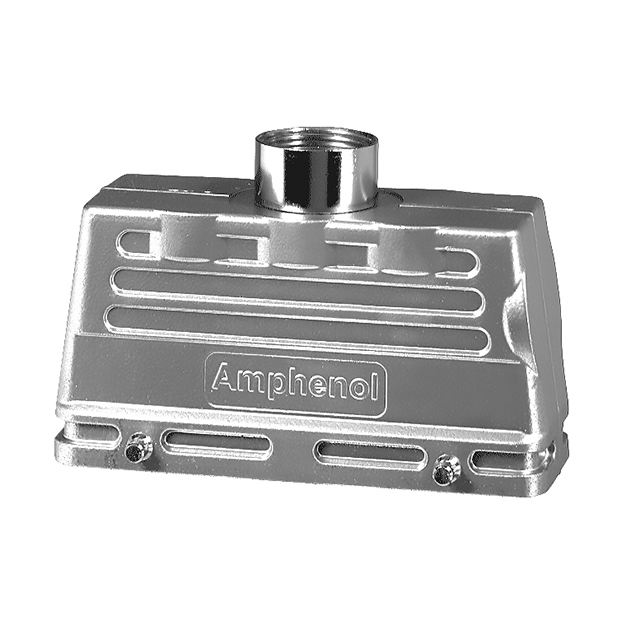

C146 10G024 606 1
ActiveAmphenol Tuchel Industrial
CONN HOOD TOP ENTRY SZE24 PG21
Deep-Dive with AI
Search across all available documentation for this part.
C146 10G024 606 1
ActiveAmphenol Tuchel Industrial
CONN HOOD TOP ENTRY SZE24 PG21
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C146 10G024 606 1 |
|---|---|
| Connector Type | Hood |
| Housing Material | Aluminum Alloy, Die Cast |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (1) on Base Bottom |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Size | E24 |
| Size / Dimension [x] | 4.724 " |
| Size / Dimension [x] | 120 mm |
| Size / Dimension [y] | 1.693 in |
| Size / Dimension [y] | 43 mm |
| Size / Dimension [z] | 2.441 " |
| Size / Dimension [z] | 62 mm |
| Style | Top Entry |
| Thread Size | PG21 |
C146 10G024 Series
| Part | Connector Type | Lock Location | Size | Housing Material | Ingress Protection | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Style | Operating Temperature [Max] | Operating Temperature [Min] | Thread Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Tuchel Industrial | Hood | Locking Clip (2) on Base Bottom | E24 | Aluminum Alloy Die Cast | IP65 - Dust Tight Water Resistant | 2.441 " | 4.724 " | 120 mm | 1.693 in | 62 mm | 43 mm | Top Entry | 100 °C | -40 °C | PG21 |
Amphenol Tuchel Industrial | Hood | Locking Clip (2) on Base Bottom | E24 | Aluminum Alloy Die Cast | IP65 - Dust Tight Water Resistant | 2.441 " | 4.724 " | 120 mm | 1.693 in | 62 mm | 43 mm | Side Entry | 100 °C | -40 °C | PG21 |
Amphenol Tuchel Industrial | Hood | Locking Clip (1) on Base Bottom | E24 | Aluminum Alloy Die Cast | IP65 - Dust Tight Water Resistant | 2.441 " | 4.724 " | 120 mm | 1.693 in | 62 mm | 43 mm | Top Entry | 100 °C | -40 °C | PG21 |
Amphenol Tuchel Industrial | Hood | Locking Clip (1) on Base Bottom | E24 | Aluminum Alloy Die Cast | IP65 - Dust Tight Water Resistant | 2.441 " | 4.724 " | 120 mm | 1.693 in | 62 mm | 43 mm | Side Entry | 100 °C | -40 °C | PG29 |
Amphenol Tuchel Industrial | Hood | Locking Clip (1) on Base Bottom | E24 | Aluminum Die Cast | IP65 - Dust Tight Water Resistant | 2.992 in | 4.724 " | 120 mm | 1.693 in | 76 mm | 43 mm | Side Entry | 100 °C | -40 °C | PG29 |
Amphenol Tuchel Industrial | Hood | Locking Clip (1) on Base Bottom | E24 | Aluminum Alloy Die Cast | IP65 - Dust Tight Water Resistant | 2.441 " | 4.724 " | 120 mm | 1.693 in | 62 mm | 43 mm | Side Entry | 100 °C | -40 °C | PG21 |
Amphenol Tuchel Industrial | Hood | Locking Clip (2) on Hood | E24 | Aluminum Die Cast | IP65 - Dust Tight Water Resistant | 2.992 in | 4.724 " | 120 mm | 1.693 in | 76 mm | 43 mm | Side Entry | 100 °C | -40 °C | PG21 |
Amphenol Tuchel Industrial | Hood | Locking Clip (2) on Hood | E24 | Aluminum Die Cast | IP65 - Dust Tight Water Resistant | 2.992 in | 4.724 " | 120 mm | 1.693 in | 76 mm | 43 mm | Side Entry | 100 °C | -40 °C | PG29 |
Amphenol Tuchel Industrial | Hood | Locking Clip (1) on Base Bottom | E24 | Aluminum Die Cast | IP65 - Dust Tight Water Resistant | 2.992 in | 4.724 " | 120 mm | 1.693 in | 76 mm | 43 mm | Top Entry | 100 °C | -40 °C | PG21 |
Amphenol Tuchel Industrial | Hood | Locking Clip (2) on Hood | E24 | Aluminum Die Cast | IP65 - Dust Tight Water Resistant | 2.992 in | 4.724 " | 120 mm | 1.693 in | 76 mm | 43 mm | Top Entry | 100 °C | -40 °C | PG29 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 45 | $ 23.53 | |
Description
General part information
C146 10G024 Series
Hood Connector Top Entry PG21 E24 IP65 - Dust Tight, Water Resistant
Documents
Technical documentation and resources
No documents available
