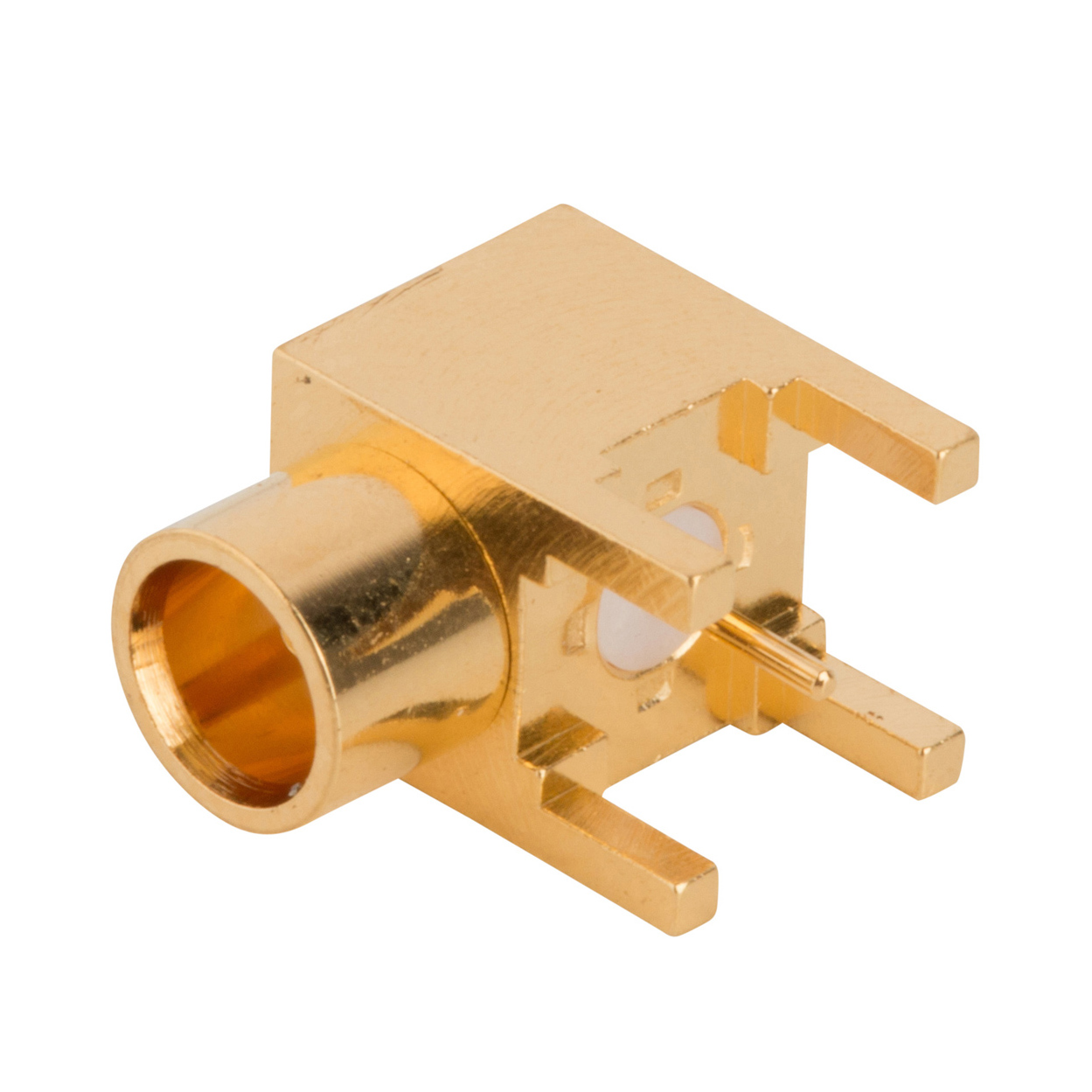

919-236J-71A

Active

Amphenol RF

MCX RIGHT ANGLE PCB JACK, THROUG

Search across all available documentation for this part.

Active

Amphenol RF

MCX RIGHT ANGLE PCB JACK, THROUG

Technical Specifications

Parameters and characteristics for this part

Specification	919-236J-71A

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	MCX
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	3 GHz
Housing Color	Gold
Impedance	75 Ohms
Mating Cycles	500
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Mating Cycles	Body Material	Number of Ports	Shield Termination	Housing Color	Center Contact Plating	Dielectric Material	Connector Type	Connector Style	Fastening Type	Body Finish	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Center Contact Material	Frequency - Max [Max]	Contact Termination
Amphenol RF 919-236J-71A	500	Brass	1	Solder	Gold	Gold	Polytetrafluoroethylene (PTFE)	Female Socket Jack	MCX	Snap-On	Gold	75 Ohms	-65 ░C	165 °C	Through Hole Right Angle	Beryllium Copper	3 GHz	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 8.09

General part information

MCX Connector Jack, Female Socket 75 Ohms Through Hole, Right Angle Solder
