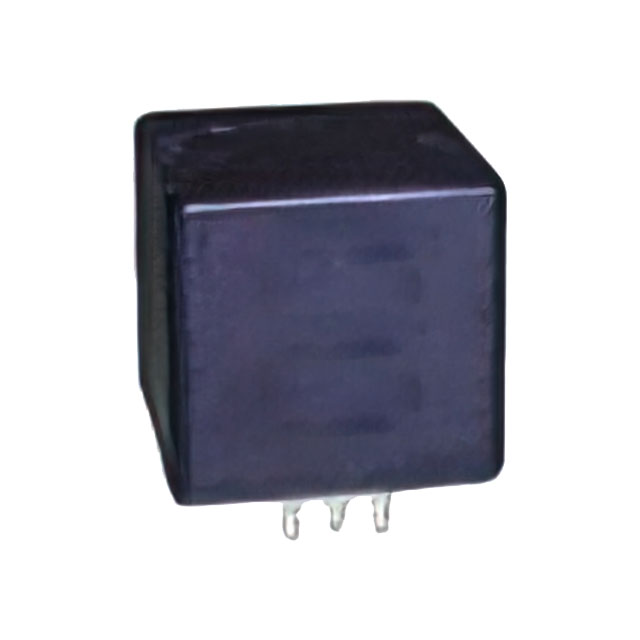

AZ983-1C-12DE
ActiveAmerican Zettler
RELAY AUTOMOTIVE SPDT 60A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AZ983-1C-12DE
ActiveAmerican Zettler
RELAY AUTOMOTIVE SPDT 60A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AZ983-1C-12DE |
|---|---|
| Coil Current | 150 mA |
| Coil Power | 1.8 W |
| Coil Resistance | 80 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 60 A |
| Features | Sealed - Epoxy |
| Mounting Type | Through Hole |
| Must Operate Voltage | 7.8 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 7 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 5 ms |
| Switching Voltage | 75 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.65 | |
| 10 | $ 3.42 | |||
| 25 | $ 3.04 | |||
| 40 | $ 2.89 | |||
| 100 | $ 2.73 | |||
| 300 | $ 2.67 | |||
Description
General part information
AZ983 Series
RELAY AUTOMOTIVE SPDT 60A 12V
