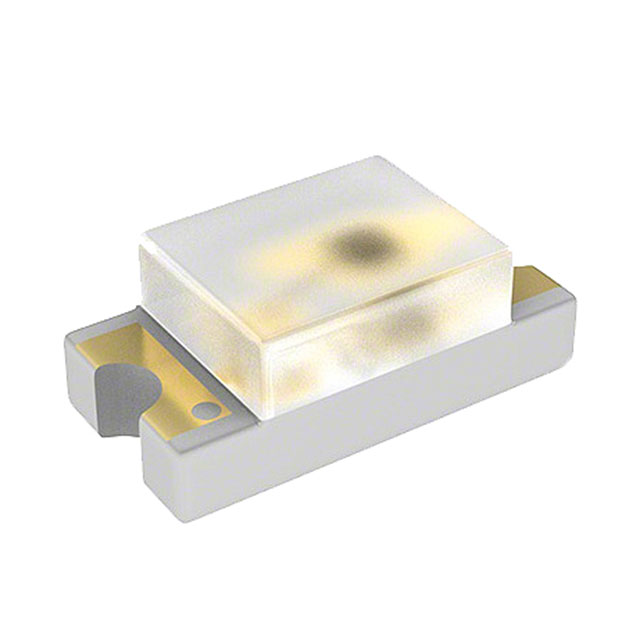

CMDA20AYAA7D1S
ActiveVisual Communications Company - VCC
LED AMBER/GREEN DIFF 0603 SMD
Deep-Dive with AI
Search across all available documentation for this part.
CMDA20AYAA7D1S
ActiveVisual Communications Company - VCC
LED AMBER/GREEN DIFF 0603 SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CMDA20AYAA7D1S |
|---|---|
| Color | Green, Amber |
| Configuration | Independent |
| Current - Test | 20 mA, 20 mA |
| Height (Max) [Max] [z] | 0.5 mm |
| Lens Color | White |
| Lens Size [x] | 1.6 mm |
| Lens Size [y] | 0.8 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 15 mcd, 8 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [y] | 0.8 mm |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 2.2 V, 2.2 V |
| Wavelength - Peak | 570 nm, 605 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.91 | |
| 10 | $ 1.21 | |||
| 100 | $ 0.90 | |||
| 500 | $ 0.82 | |||
| 1000 | $ 0.68 | |||
| 2000 | $ 0.64 | |||
| Digi-Reel® | 1 | $ 1.91 | ||
| 10 | $ 1.21 | |||
| 100 | $ 0.90 | |||
| 500 | $ 0.82 | |||
| 1000 | $ 0.68 | |||
| 2000 | $ 0.64 | |||
| Tape & Reel (TR) | 4000 | $ 0.60 | ||
Description
General part information
CMDA20 Series
Amber, Green LED Indication - Discrete 2.2V Amber, 2.2V Green 0603 (1608 Metric)
Documents
Technical documentation and resources
No documents available
