310-060-500-207

Active

EDAC Inc.

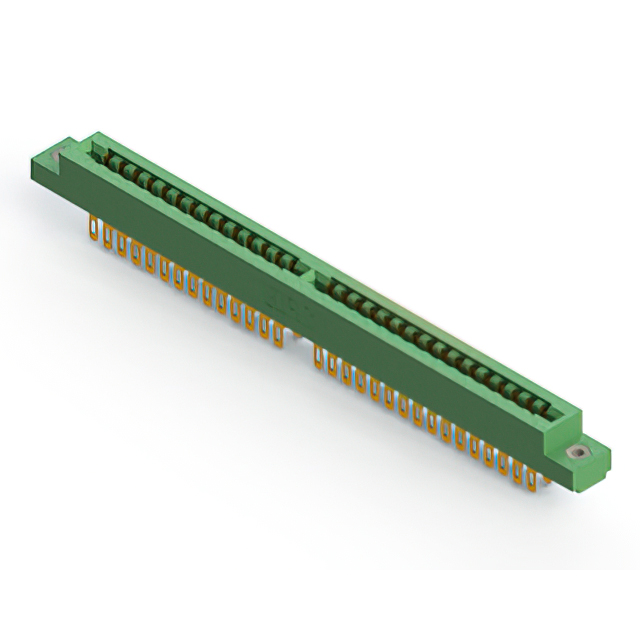

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 60 CONTACTS, PANEL MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN +1

310-060-500-207

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 60 CONTACTS, PANEL MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Drawing EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	310-060-500-207

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Top Opening, Flush Mount, M3, Threaded Insert
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	60
Number of Positions/Bay/Row [custom]	30
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	2

310-060 Series

Part	Contact Material	Termination Rows	Mounting Type	Material - Insulation	Number of Positions/Bay/Row [custom]	Number of Positions	Contact Type	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Card Type	Color	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Finish	Gender	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Read Out	Features
EDAC Inc. 310-060-520-203	Copper Alloy	2	Through Hole	Polyester Thermoplastic	30	60	Semi Bellows	2	10 Áin	0.25 Ám	0.156 in	3.96 mm	Non Specified - Dual Edge	Green	-40 °C	105 ░C	Solder	Gold	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	0.116 in	Floating Bobbin Flush Mount	2.95 mm	Dual
EDAC Inc. 310-060-500-207	Copper Alloy	2	Through Hole	Polyester Thermoplastic	30	60	Semi Bellows	2	10 Áin	0.25 Ám	0.156 in	3.96 mm	Non Specified - Dual Edge	Green	-40 °C	105 ░C	Solder Eyelet(s)	Gold	Female	1.37 mm	0.054 "	1.78 mm	0.07 in		Flush Mount M3 Threaded Insert Top Opening		Dual
EDAC Inc. 310-060-542-202	Copper Alloy	2	Through Hole	Polyester Thermoplastic	30	60	Semi Bellows	2	10 Áin	0.25 Ám	0.156 in	3.96 mm	Non Specified - Dual Edge	Green	-40 °C	105 ░C	Wire Wrap	Gold	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	Dual
EDAC Inc. 310-060-520-208	Copper Alloy	2	Through Hole	Polyester Thermoplastic	30	60	Semi Bellows	2	10 Áin	0.25 Ám	0.156 in	3.96 mm	Non Specified - Dual Edge	Green	-40 °C	105 ░C	Solder	Gold	Female	1.37 mm	0.054 "	1.78 mm	0.07 in		4-40 Flush Mount Threaded Insert Top Opening		Dual
EDAC Inc. 310-060-524-208	Copper Alloy	2	Through Hole	Polyester Thermoplastic	30	60	Semi Bellows	2	10 Áin	0.25 Ám	0.156 in	3.96 mm	Non Specified - Dual Edge	Green	-40 °C	105 ░C	Solder	Gold	Female	1.37 mm	0.054 "	1.78 mm	0.07 in		4-40 Flush Mount Threaded Insert Top Opening		Dual
EDAC Inc. 310-060-560-208	Copper Alloy	2	Board Edge Straddle Mount	Polyester Thermoplastic	30	60	Semi Bellows	2	10 Áin	0.25 Ám	0.156 in	3.96 mm	Non Specified - Dual Edge	Green	-40 °C	105 ░C	Solder	Gold	Female	1.37 mm	0.054 "	1.78 mm	0.07 in		4-40 Flush Mount Threaded Insert Top Opening		Dual	Card Extender
EDAC Inc. 310-060-556-204	Copper Alloy	2	Board Edge Straddle Mount	Polyester Thermoplastic	30	60	Semi Bellows	2	10 Áin	0.25 Ám	0.156 in	3.96 mm	Non Specified - Dual Edge	Green	-40 °C	105 ░C	Solder	Gold	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm	Dual	Card Extender
EDAC Inc. 310-060-540-201	Copper Alloy	2	Through Hole	Polyester Thermoplastic	30	60	Semi Bellows	2	10 Áin	0.25 Ám	0.156 in	3.96 mm	Non Specified - Dual Edge	Green	-40 °C	105 ░C	Wire Wrap	Gold	Female	1.37 mm	0.054 "	1.78 mm	0.07 in				Dual
EDAC Inc. 310-060-540-204	Copper Alloy	2	Through Hole	Polyester Thermoplastic	30	60	Semi Bellows	2	10 Áin	0.25 Ám	0.156 in	3.96 mm	Non Specified - Dual Edge	Green	-40 °C	105 ░C	Wire Wrap	Gold	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm	Dual
EDAC Inc. 310-060-522-203	Copper Alloy	2	Through Hole	Polyester Thermoplastic	30	60	Semi Bellows	2	10 Áin	0.25 Ám	0.156 in	3.96 mm	Non Specified - Dual Edge	Green	-40 °C	105 ░C	Solder	Gold	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	0.116 in	Floating Bobbin Flush Mount	2.95 mm	Dual

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 16.23
Newark	Each	1	$ 18.85
		100	$ 14.71
		250	$ 13.57
		500	$ 11.62
		1000	$ 8.59

Description

General part information

310-060 Series

60 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
