Technical Specifications
Parameters and characteristics for this part

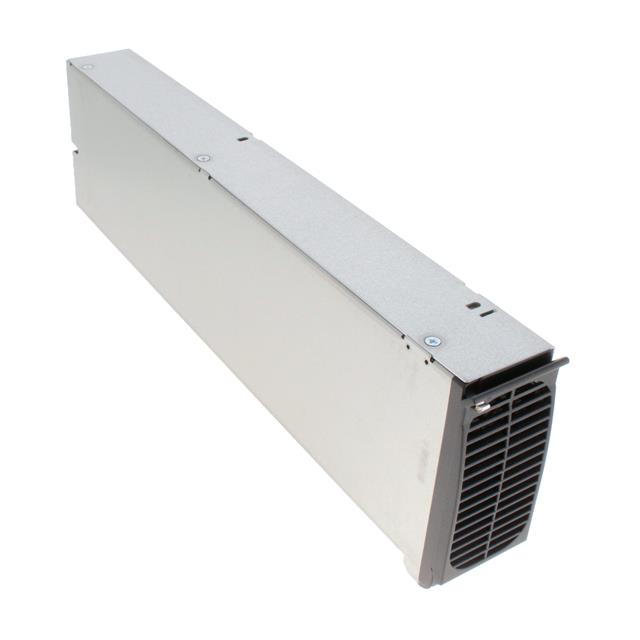

| Specification | CP3500AC52TEZ-FB2 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output 1 | 67.3 A |
| Efficiency | 96 % |
| Features | Remote On/Off, Adjustable Output, Load Sharing, I2C Interface, PMBus™, Standby Output |
| Mounting Type | Rack Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 75 ¯C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 3500 W |
| Size / Dimension [x] | 351.8 mm |
| Size / Dimension [x] | 13.85 " |
| Size / Dimension [y] | 4 " |
| Size / Dimension [y] | 101.6 mm |
| Size / Dimension [z] | 1.63 in |
| Size / Dimension [z] | 41.4 mm |
| Standard Number | 60950-1 |
| Type | Enclosed |
| Voltage - Input [Max] | 265 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 52 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
CP3500 Series
Enclosed AC DC Converters 1 Output 52V 90 ~ 265 VAC Input
