133,BK

Active

Serpac

BOX ABS BLACK 4.38"L X 3.25"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS BLACK 4.38"L X 3.25"W

Technical Specifications

Parameters and characteristics for this part

Specification	133,BK

Area (L x W)	14.2 in²
Area (L x W)	92 cm˛
Color	Black
Container Type	Box
Design	Split Sides, Hand Held
Features	PCB Supports
Height [z]	63.5 mm
Height [z]	2.5 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Thickness	2.54 mm
Thickness	0.1 in
Weight	109.77 g
Weight	0.242 lb

Part	Material	Design	Color	Thickness	Thickness	Container Type	Height [z]	Height [z]	Ratings	Weight	Weight	Area (L x W)	Area (L x W)	Features	Material Flammability Rating
Serpac 133,AL	Plastic ABS	Hand Held Split Sides	Almond	2.54 mm	0.1 in	Box	63.5 mm	2.5 in	IP40 NEMA 1	109.77 g	0.242 lb	92 cm˛	14.2 in²	PCB Supports	UL94 HB
Serpac 133,BK	Plastic ABS	Hand Held Split Sides	Black	2.54 mm	0.1 in	Box	63.5 mm	2.5 in	IP40 NEMA 1	109.77 g	0.242 lb	92 cm˛	14.2 in²	PCB Supports	UL94 HB
Serpac 133,GY	Plastic ABS	Hand Held Split Sides	Gray	2.54 mm	0.1 in	Box	63.5 mm	2.5 in	IP40 NEMA 1	109.77 g	0.242 lb	92 cm˛	14.2 in²	PCB Supports	UL94 HB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

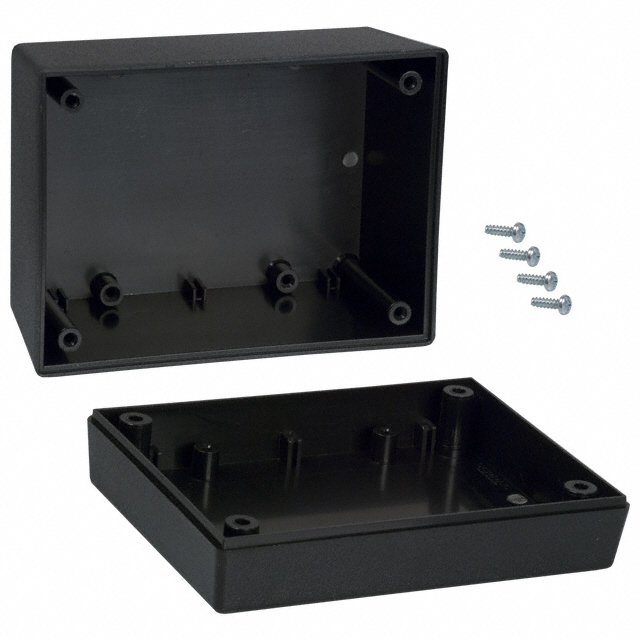

Box Plastic, ABS Black Hand Held, Split Sides 4.380" L x 3.250" W (111.25mm x 82.55mm) X 2.500" (63.50mm)

Technical documentation and resources

No documents available
