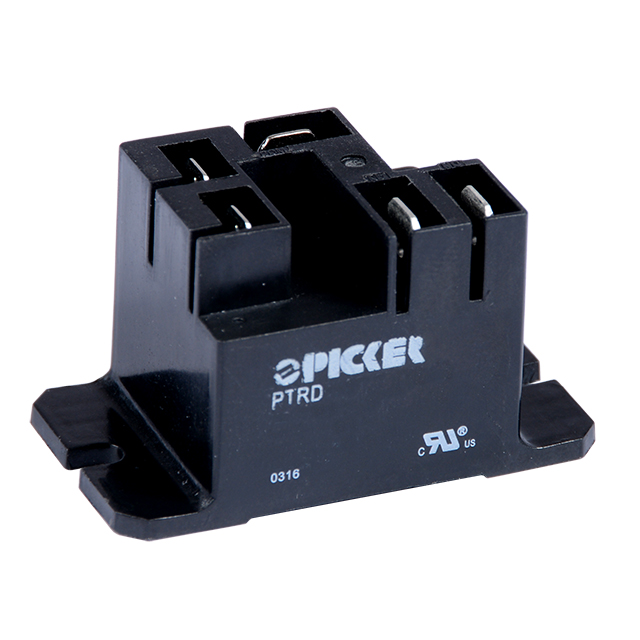

PTRD-1A-24S-T4-X
ActivePicker Components
RELAY GEN PURPOSE SPST 40A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PTRD-1A-24S-T4-X |
|---|---|
| Approval Agency | cUL, cURus, UL |
| Coil Current | 37.5 mA |
| Coil Insulation | Class F |
| Coil Resistance | 640 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Contact Rating (Current) | 40 A |
| Load - Max Switching | 4400 W, 12000 VA |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 15 ms |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -55 °C |
| Relay Type | General Purpose |
| Release Time | 10 ms |
| Seal Rating | Sealed - Fully |
| Switching Voltage | 110 VDC, 300 VAC |
| Termination Style | Quick Connect - 0.187"/0.250" |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 300 | $ 1.96 | |
Description
General part information
PTRD-1A Series
General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Chassis Mount
