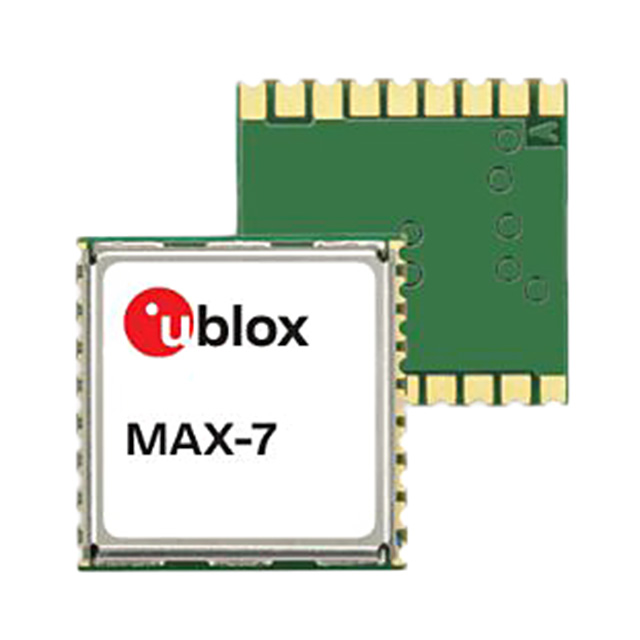

MAX-7W-0
Obsoleteu-blox
RF RX GLONASS/GNSS/GPS 1.575GHZ
Deep-Dive with AI
Search across all available documentation for this part.
MAX-7W-0
Obsoleteu-blox
RF RX GLONASS/GNSS/GPS 1.575GHZ
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MAX-7W-0 |
|---|---|
| Antenna Connector | Not Included |
| Applications | General Purpose |
| Data Interface | I2C, UART |
| Frequency | 1.575 GHz |
| Modulation or Protocol | GNSS, GLONASS, GPS |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 18-SMD Module |
| Sensitivity | -158 dBm |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 31.50 | |
| 10 | $ 28.91 | |||
| 50 | $ 23.71 | |||
| 100 | $ 18.98 | |||
| Digi-Reel® | 1 | $ 31.50 | ||
| 10 | $ 28.91 | |||
| 50 | $ 23.71 | |||
| 100 | $ 18.98 | |||
| Tape & Reel (TR) | 500 | $ 18.98 | ||
Description
General part information
MAX-7W Series
MAX-7 RF Receiver GLONASS, GNSS, GPS 1.575GHz -158dBm Not Included
