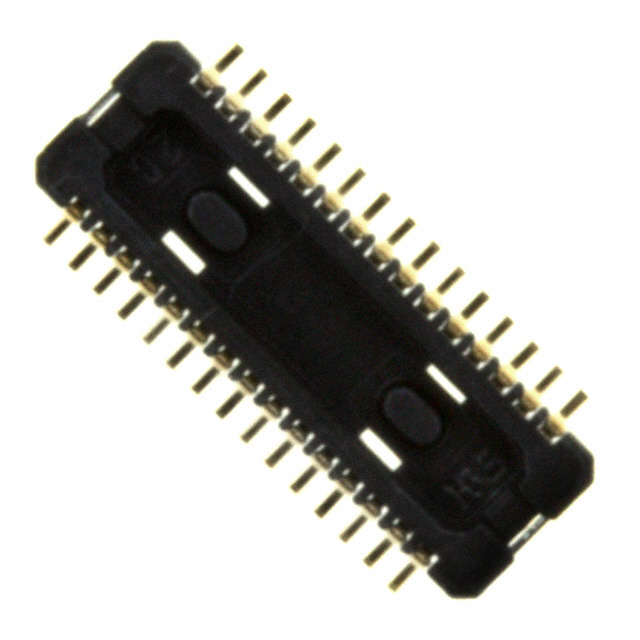

DF30RB-30DP-0.4V(81)

Obsolete

Hirose Electric USA, Inc.

BOARD CONNECTOR, 30 CONTACT(S), 2 ROW(S), STRAIGHT, 0.016 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING, BLACK INSULATOR, PLUG,

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

BOARD CONNECTOR, 30 CONTACT(S), 2 ROW(S), STRAIGHT, 0.016 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING, BLACK INSULATOR, PLUG,

Technical Specifications

Parameters and characteristics for this part

Specification	DF30RB-30DP-0.4V(81)

Connector Type	Header, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board [z]	0.8 mm
Height Above Board [z]	0.031 in
Mated Stacking Heights	0.9 mm
Mounting Type	Surface Mount
Number of Positions	30
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Number of Positions	Connector Type	Features	Number of Rows	Contact Finish	Height Above Board [z]	Height Above Board [z]	Mated Stacking Heights	Pitch [x]	Pitch [x]	Mounting Type
Hirose Electric USA, Inc. DF30RB-30DP-0.4V(82)	30	Header Center Strip Contacts	Solder Retention	2	Gold	0.8 mm	0.031 in	0.9 mm	0.016 in	0.4 mm	Surface Mount
Hirose Electric USA, Inc. DF30RB-30DP-0.4V(81)	30	Header Center Strip Contacts	Solder Retention	2	Gold	0.8 mm	0.031 in	0.9 mm	0.016 in	0.4 mm	Surface Mount
Hirose Electric USA, Inc. DF30RB-60DP-0.4V(82)	60	Header Center Strip Contacts	Solder Retention	2	Gold	0.8 mm	0.031 in	0.9 mm	0.016 in	0.4 mm	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

30 Position Connector Header, Center Strip Contacts Surface Mount Gold
