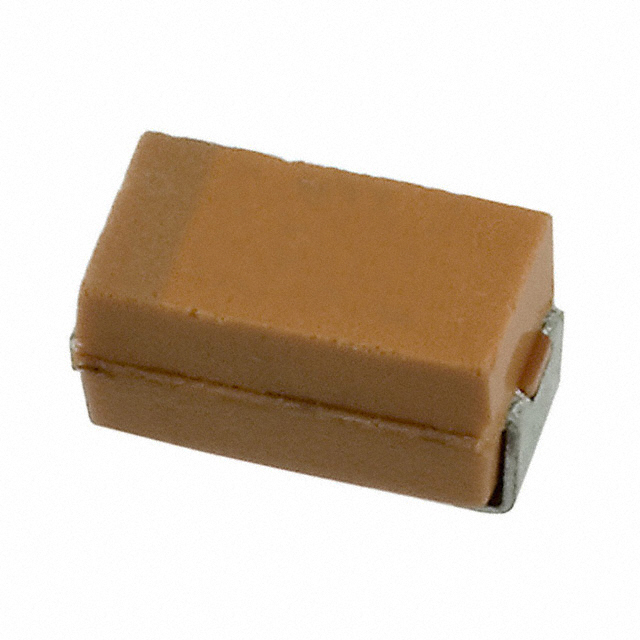

NOJA685M006RWJ

Active

Kyocera AVX

CAP NIOB OXI 6.8UF 20% 6.3V 1206

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

NOJA685M006RWJ

Active

Kyocera AVX

CAP NIOB OXI 6.8UF 20% 6.3V 1206

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NOJA685M006RWJ

Capacitance	6.8 ÁF
Current - Leakage	1.1 µA
Dissipation Factor	6 %
ESR (Equivalent Series Resistance)	2.6 Ohms
Height - Seated (Max) [Max]	0.071 "
Height - Seated (Max) [Max]	1.8 mm
Manufacturer Size Code	A
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	1206 (3216 Metric)
Size / Dimension [x]	0.126 "
Size / Dimension [x]	3.2 mm
Size / Dimension [y]	0.063 in
Size / Dimension [y]	1.6 mm
Supplier Device Package	1206
Supplier Device Package	3216 Metric
Tolerance	20 %
Voltage - Rated	6.3 V

NOJA Series

Part	Capacitance	ESR (Equivalent Series Resistance)	Package / Case	Voltage - Rated	Dissipation Factor	Current - Leakage	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Tolerance	Supplier Device Package	Supplier Device Package	Mounting Type	Manufacturer Size Code	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Kyocera AVX NOJA685M006RWJ	6.8 ÁF	2.6 Ohms	1206 (3216 Metric)	6.3 V	6 %	1.1 µA	0.063 in	1.6 mm	0.126 "	3.2 mm	20 %	1206	3216 Metric	Surface Mount	A	105 ░C	-55 °C	0.071 "	1.8 mm
Kyocera AVX NOJA106M010SWJ	10 µF	2.2 Ohms	1206 (3216 Metric)	10 V	6 %	2 µA	0.063 in	1.6 mm	0.126 "	3.2 mm	20 %	1206	3216 Metric	Surface Mount	A	105 ░C	-55 °C	0.071 "	1.8 mm
Kyocera AVX NOJA475M010RWJ	4.7 µF	3.1 Ohm	1206 (3216 Metric)	10 V	6 %	1 µA	0.063 in	1.6 mm	0.126 "	3.2 mm	20 %	1206	3216 Metric	Surface Mount	A	105 ░C	-55 °C	0.071 "	1.8 mm
Kyocera AVX NOJA685M010RWJ	6.8 ÁF	2.6 Ohms	1206 (3216 Metric)	10 V	6 %	1.4 µA	0.063 in	1.6 mm	0.126 "	3.2 mm	20 %	1206	3216 Metric	Surface Mount	A	105 ░C	-55 °C	0.071 "	1.8 mm
Kyocera AVX NOJA475M010SWJ	4.7 µF	3.1 Ohm	1206 (3216 Metric)	10 V	6 %	1 µA	0.063 in	1.6 mm	0.126 "	3.2 mm	20 %	1206	3216 Metric	Surface Mount	A	105 ░C	-55 °C	0.071 "	1.8 mm
Kyocera AVX NOJA106M006RWJV	10 µF	2.2 Ohms	1206 (3216 Metric)	6.3 V	6 %	1.2 µA	0.063 in	1.6 mm	0.126 "	3.2 mm	20 %	1206	3216 Metric	Surface Mount	A	105 ░C	-55 °C	0.071 "	1.8 mm
Kyocera AVX NOJA106M010RWJV	10 µF	2.2 Ohms	1206 (3216 Metric)	10 V	6 %	2 µA	0.063 in	1.6 mm	0.126 "	3.2 mm	20 %	1206	3216 Metric	Surface Mount	A	105 ░C	-55 °C	0.071 "	1.8 mm
Kyocera AVX NOJA226M006RWJV	22 µF	1.8 Ohm	1206 (3216 Metric)	6.3 V	8 %	2.6 µA	0.063 in	1.6 mm	0.126 "	3.2 mm	20 %	1206	3216 Metric	Surface Mount	A	105 ░C	-55 °C	0.071 "	1.8 mm
Kyocera AVX NOJA156M010RWJ	15 µF	2 Ohms	1206 (3216 Metric)	10 V	6 %	3 µA	0.063 in	1.6 mm	0.126 "	3.2 mm	20 %	1206	3216 Metric	Surface Mount	A	105 ░C	-55 °C	0.071 "	1.8 mm
Kyocera AVX NOJA226M002RWJ	22 µF	1.9 Ohms	1206 (3216 Metric)	2.5 V	6 %	1.1 µA	0.063 in	1.6 mm	0.126 "	3.2 mm	20 %	1206	3216 Metric	Surface Mount	A	105 ░C	-55 °C	0.071 "	1.8 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2000	$ 0.15

Description

General part information

NOJA Series

6.8 µF Niobium Oxide Capacitor 6.3 V 1206 (3216 Metric) 2.6 Ohms
