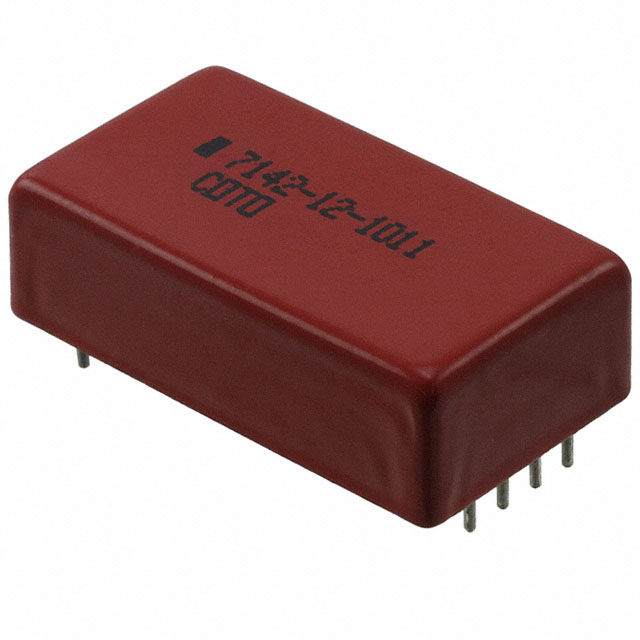

7142-12-1011

Active

Coto Technology

RELAY REED DPDT 250MA 12V

Search across all available documentation for this part.

Active

Coto Technology

RELAY REED DPDT 250MA 12V

Technical Specifications

Parameters and characteristics for this part

Part	Operate Time	Contact Rating (Current)	Coil Resistance	Termination Style	Contact Form	Mounting Type	Switching Voltage	Must Release Voltage	Coil Current	Coil Voltage	Features	Release Time	Coil Type	Operating Temperature [Max]	Operating Temperature [Min]	Must Operate Voltage
Coto Technology 7142-05-1010	2 ms	250 mA	65 Ohms	PC Pin	DPDT (2 Form C)	Through Hole	150 VDC 150 VAC	0.4 VDC	77 mA	5 VDC	Electrostatic Shield	2.5 ms	Non Latching	85 °C	-20 C	3.75 VDC
Coto Technology 7142-12-1011	2 ms	250 mA	490 Ohms	PC Pin	DPDT (2 Form C)	Through Hole	150 VDC 150 VAC	1 VDC	24.5 mA	12 VDC	Diode Electrostatic Shield	2.5 ms	Non Latching	85 °C	-20 C	9 VDC
Coto Technology 7142-12-1000	2 ms	250 mA	490 Ohms	PC Pin	DPDT (2 Form C)	Through Hole	150 VDC 150 VAC	1 VDC	24.5 mA	12 VDC		2.5 ms	Non Latching	85 °C	-20 C	9 VDC
Coto Technology 7142-05-1111	2 ms	250 mA	65 Ohms	PC Pin	DPDT (2 Form C)	Through Hole	150 VDC 150 VAC	0.4 VDC	77 mA	5 VDC	Diode Electrostatic Shield	2.5 ms	Non Latching	85 °C	-20 C	3.75 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY REED DPDT 250MA 12V
