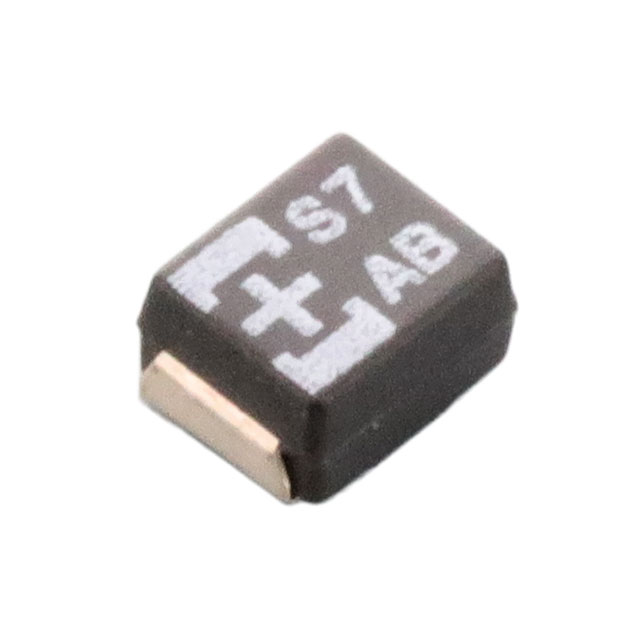

10TAB47M
ActivePanasonic Industrial Automation Sales
POSCAP, TA SERIES ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
10TAB47M
ActivePanasonic Industrial Automation Sales
POSCAP, TA SERIES ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 10TAB47M |
|---|---|
| Capacitance | 47 µF |
| ESR (Equivalent Series Resistance) | 70 mOhm |
| Features | General Purpose |
| Height - Seated (Max) [Max] [z] | 2 mm |
| Height - Seated (Max) [Max] [z] | 0.079 in |
| Lifetime @ Temp. | 1000 Hrs |
| Manufacturer Size Code | B2 |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1411 |
| Package / Case | 3528 Metric |
| Size / Dimension [x] | 0.138 " |
| Size / Dimension [x] | 3.5 mm |
| Size / Dimension [y] | 0.11 in |
| Size / Dimension [y] | 2.8 mm |
| Tolerance | 20 % |
| Type | Molded |
| Voltage - Rated | 10 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.61 | |
| 10 | $ 1.21 | |||
| 50 | $ 1.10 | |||
| 100 | $ 0.90 | |||
| 500 | $ 0.72 | |||
| 1000 | $ 0.64 | |||
| Digi-Reel® | 1 | $ 1.61 | ||
| 10 | $ 1.21 | |||
| 50 | $ 1.10 | |||
| 100 | $ 0.90 | |||
| 500 | $ 0.72 | |||
| 1000 | $ 0.64 | |||
| Tape & Reel (TR) | 2000 | $ 0.59 | ||
| 4000 | $ 0.57 | |||
| 10000 | $ 0.55 | |||
| 14000 | $ 0.54 | |||
| Newark | Each (Supplied on Full Reel) | 2000 | $ 0.65 | |
| 4000 | $ 0.58 | |||
| 6000 | $ 0.56 | |||
| 10000 | $ 0.55 | |||
Description
General part information
10TAB Series
POSCAP, TA SERIES ROHS COMPLIANT: YES
Documents
Technical documentation and resources
