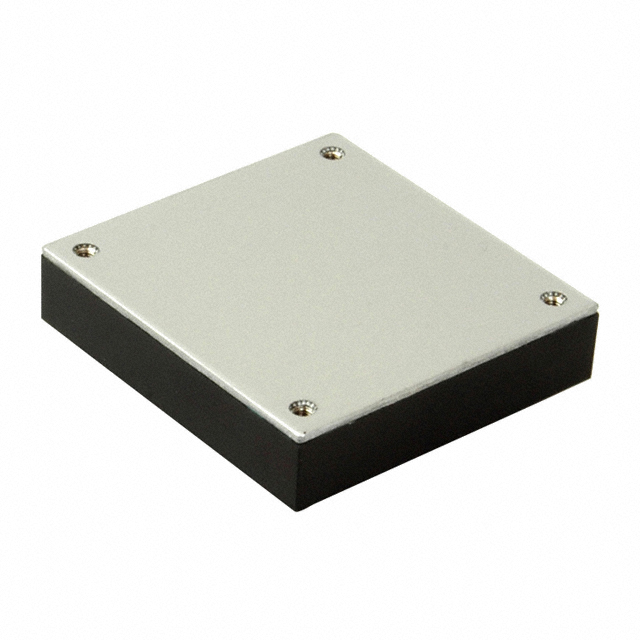

VHK150W-Q24-S5

Active

CUI Inc.

DC/DC CONVERTER 5V 125W

Deep-Dive with AI

Search across all available documentation for this part.

VHK150W-Q24-S5

Active

CUI Inc.

DC/DC CONVERTER 5V 125W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VHK150W-Q24-S5

Approval Agency	CE
Current - Output (Max) [Max]	25 A
Efficiency	87 %
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	125 W
Size / Dimension [x]	4.23 "
Size / Dimension [x]	107.5 mm
Size / Dimension [y]	101.8 mm
Size / Dimension [y]	4.01 in
Size / Dimension [z]	38 mm
Size / Dimension [z]	1.5 "
Type	Enclosed
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	5 V

VHK150W Series

Part	Input Type	Voltage - Output 1	Efficiency	Power (Watts)	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Current - Output (Max) [Max]	DC Voltage - Input (Max) [Max]	DC Voltage - Input (Min) [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Type	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Size / Dimension [y]	Size / Dimension [z]	Mounting Type	Voltage - Isolation
CUI Inc. VHK150W-Q24-S5-DIN	DC	5 V	87 %	150 W	1	85 °C	-40 °C	CE	25 A	36 V	9 V	4.23 "	101.9 mm	107.4 mm	4.01 in	52.6 mm	2.07 in
CUI Inc. VHK150W-Q24-S12		12 V	86 %	150 W	1	100 °C	-40 °C		12.5 A			4.23 "		107.5 mm	4 "		1.5 "	Enclosed	36 V	9 V	102 mm	38 mm	Chassis Mount
CUI Inc. VHK150W-Q24-S48-DIN	DC	48 V	84 %	150 W	1	85 °C	-40 °C	CE	3.12 A	36 V	9 V	4.23 "	101.9 mm	107.4 mm	4.01 in	52.6 mm	2.07 in
CUI Inc. VHK150W-Q24-S5		5 V	87 %	125 W	1	85 °C	-40 °C	CE	25 A			4.23 "	101.8 mm	107.5 mm	4.01 in	38 mm	1.5 "	Enclosed	36 V	9 V			Chassis Mount	1.5 kV
CUI Inc. VHK150W-Q24-S28		28 V	87 %	151 W	1	85 °C	-40 °C	CE	5.4 A			4.23 "	101.8 mm	107.5 mm	4.01 in	38 mm	1.5 "	Enclosed	36 V	9 V			Chassis Mount	1.5 kV
CUI Inc. VHK150W-Q48-S24-DIN	DC	24 V	87.5 %	150 W	1	85 °C	-40 °C	CE	6.5 A	75 V	18 V	4.23 "	101.9 mm	107.4 mm	4.01 in	52.6 mm	2.07 in
CUI Inc. VHK150W-Q48-S48		48 V	87 %	150 W	1	100 °C	-40 °C		3.12 A			4.23 "		107.5 mm	4 "		1.5 "	Enclosed	75 V	18 V	102 mm	38 mm	Chassis Mount
CUI Inc. VHK150W-Q48-S28-DIN	DC	28 V	89 %	150 W	1	85 °C	-40 °C	CE	5.4 A	75 V	18 V	4.23 "	101.9 mm	107.4 mm	4.01 in	52.6 mm	2.07 in
CUI Inc. VHK150W-Q48-S48-DIN	DC	48 V	87 %	150 W	1	85 °C	-40 °C	CE	3.12 A	75 V	18 V	4.23 "	101.9 mm	107.4 mm	4.01 in	52.6 mm	2.07 in
CUI Inc. VHK150W-Q48-S12-DIN	DC	12 V	88 %	150 W	1	85 °C	-40 °C	CE	12.5 A	75 V	18 V	4.23 "	101.9 mm	107.4 mm	4.01 in	52.6 mm	2.07 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	64	$ 191.38

Description

General part information

VHK150W Series

Enclosed DC DC Converter 1 Output 5V 25A 36V Input

Documents

Technical documentation and resources

No documents available
