5530781853F

Active

DIALIGHT

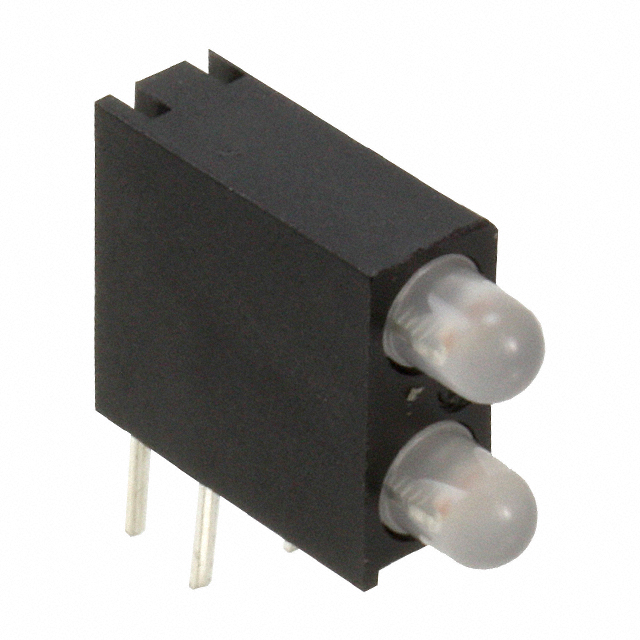

LED CBI 3MM BI-LVL BLU/GN/RED RA

Deep-Dive with AI

Search across all available documentation for this part.

5530781853F

Active

DIALIGHT

LED CBI 3MM BI-LVL BLU/GN/RED RA

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5530781853F

Color	Red (x 1), Blue (x 1), Green
Configuration	2 High
Current	20 mA, 120 mA, 120 mA
Lens Size [diameter]	3 mm
Lens Style	Round with Domed Top
Millicandela Rating [custom]	12.5 mcd
Millicandela Rating [custom]	10 mcd
Millicandela Rating [custom]	4.7 mcd
Mounting Type	Through Hole, Right Angle
Viewing Angle	Red
Viewing Angle [custom]	60 °
Viewing Angle [custom]	70 °
Voltage Rating	3.5 V, 2 V, 2.1 V
Wavelength - Peak	635 nm, 428 nm, 565 nm

5530781 Series

Part	Configuration	Wavelength - Peak	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Lens Size [diameter]	Voltage Rating	Lens Style	Color	Mounting Type	Current	Viewing Angle [custom]	Viewing Angle	Viewing Angle [custom]
DIALIGHT 5530781853F	2 High	428 nm 565 nm 635 nm	12.5 mcd	10 mcd	4.7 mcd	3 mm	2 V 2.1 V 3.5 V	Round with Domed Top	Blue (x 1) Green Red (x 1)	Through Hole Right Angle	20 mA 120 mA 120 mA	60 °	Red	70 °

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.00
		50	$ 4.24
		100	$ 3.48
		1000	$ 2.69

Description

General part information

5530781 Series

LED Circuit Board Indicator LED Circuit Board Indicator 2 High Blue (x 1), Green, Red (x 1) 3.5V Blue, 2.1V Green, 2V Red 20mA Blue, 120mA Green, 120mA Red Round with Domed Top 3.00mm Dia Through Hole, Right Angle

Documents

Technical documentation and resources

No documents available
