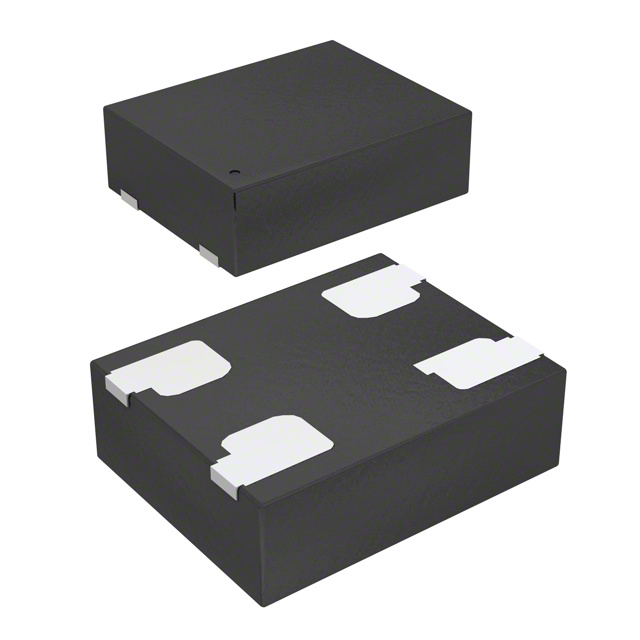

CS00119AM-13-18S-61.250000E

Active

SiTime

MEMS OSC XO 61.2500MHZ LVCMOS

Search across all available documentation for this part.

Active

SiTime

MEMS OSC XO 61.2500MHZ LVCMOS

Technical Specifications

Parameters and characteristics for this part

Part	Ratings	Package / Case	Frequency	Voltage - Supply	Type	Frequency Stability	Current - Supply (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Output	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Base Resonator	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Function
SiTime CS00119AM-13-18S-61.250000E	AEC-Q100	4-SMD No Lead	61.25 MHz	1.8 V	XO (Standard)	50 ppm	7 mA	-55 °C	125 °C	LVCMOS	0.8 mm	0.031 "	MEMS	Surface Mount	0.098 "	2 mm	2.5 mm	0.079 in	Standby (Power Down)
SiTime CS00119AA-11-18ED25.000000E	AEC-Q100	4-SMD No Lead	25 MHz	1.8 V	XO (Standard)	20 ppm	7 mA	-40 °C	125 °C	LVCMOS	0.8 mm	0.031 "	MEMS	Surface Mount	0.098 "	2 mm	2.5 mm	0.079 in	Enable/Disable
SiTime CS00119AA-11-18ED25.000000G	AEC-Q100	4-SMD No Lead	25 MHz	1.8 V	XO (Standard)	20 ppm	7 mA	-40 °C	125 °C	LVCMOS	0.8 mm	0.031 "	MEMS	Surface Mount	0.098 "	2 mm	2.5 mm	0.079 in	Enable/Disable
SiTime CS00119AA-13-18S-60.625000E	AEC-Q100	4-SMD No Lead	60.625 MHz	1.8 V	XO (Standard)	50 ppm	7 mA	-40 °C	125 °C	LVCMOS	0.8 mm	0.031 "	MEMS	Surface Mount	0.098 "	2 mm	2.5 mm	0.079 in	Standby (Power Down)
SiTime CS00119AA-13-18E-144.00000E	AEC-Q100	4-SMD No Lead	144 MHz	1.8 V	XO (Standard)	50 ppm	7 mA	-40 °C	125 °C	LVCMOS	0.8 mm	0.031 "	MEMS	Surface Mount	0.098 "	2 mm	2.5 mm	0.079 in	Enable/Disable
SiTime CS00119AA-13-18E-145.00000E	AEC-Q100	4-SMD No Lead	145 MHz	1.8 V	XO (Standard)	50 ppm	7 mA	-40 °C	125 °C	LVCMOS	0.8 mm	0.031 "	MEMS	Surface Mount	0.098 "	2 mm	2.5 mm	0.079 in	Enable/Disable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 4.75
	Digi-Reel®	1	$ 4.75
	Tape & Reel (TR)	1000	$ 3.20

General part information

61.25 MHz XO (Standard) LVCMOS Oscillator 1.8V Standby (Power Down) 4-SMD, No Lead
