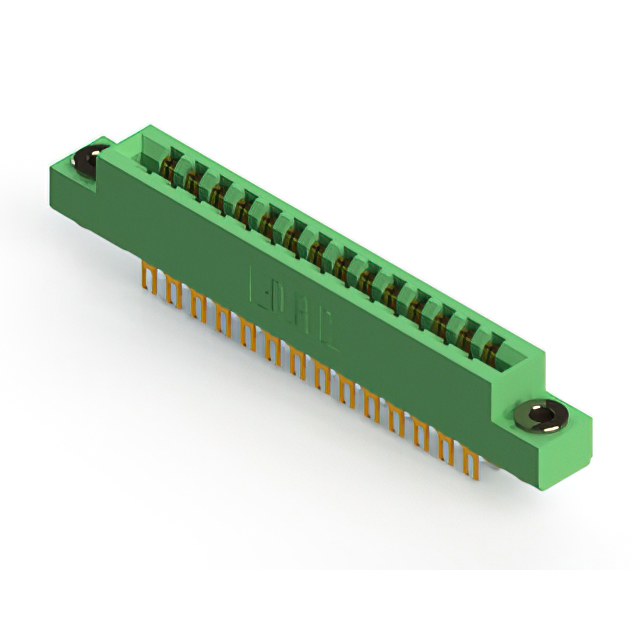

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 28 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
305-028-500-203
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 28 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 305-028-500-203 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Number of Positions | 28 |
| Number of Positions/Bay/Row [custom] | 14 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 2 |
305-028 Series
| Part | Features | Material - Insulation | Card Type | Gender | Termination Rows | Number of Positions | Color | Number of Rows | Contact Type | Termination | Contact Finish Thickness | Contact Finish Thickness | Pitch [x] | Pitch [x] | Mounting Type | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions/Bay/Row [custom] | Read Out | Contact Finish | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Card Extender | Polyester Thermoplastic | Non Specified - Dual Edge | Female | 2 | 28 | Green | 2 | Semi Bellows | Solder | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | Board Edge Straddle Mount | Copper Alloy | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 14 | Dual | Gold | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm |
EDAC Inc. | Card Extender | Polyester Thermoplastic | Non Specified - Dual Edge | Female | 2 | 28 | Green | 2 | Semi Bellows | Solder | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | Board Edge Straddle Mount | Copper Alloy | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 14 | Dual | Gold | |||
EDAC Inc. | Polyester Thermoplastic | Non Specified - Dual Edge | Female | 2 | 28 | Green | 2 | Semi Bellows | Solder | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | Panel Mount Through Hole | Copper Alloy | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 14 | Dual | Gold | 4-40 Flush Mount Threaded Insert Top Opening | |||
EDAC Inc. | Card Extender | Polyester Thermoplastic | Non Specified - Dual Edge | Female | 2 | 28 | Green | 2 | Semi Bellows | Solder | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | Board Edge Straddle Mount | Copper Alloy | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 14 | Dual | Gold | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm |
EDAC Inc. | Card Extender | Polyester Thermoplastic | Non Specified - Dual Edge | Female | 2 | 28 | Green | 2 | Semi Bellows | Solder | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | Board Edge Straddle Mount | Copper Alloy | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 14 | Dual | Gold | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm |
EDAC Inc. | Card Extender | Polyester Thermoplastic | Non Specified - Dual Edge | Female | 2 | 28 | Green | 2 | Semi Bellows | Solder | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | Board Edge Straddle Mount | Copper Alloy | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 14 | Dual | Gold | Flush Mount M3 Threaded Insert Top Opening | ||
EDAC Inc. | Card Extender | Polyester Thermoplastic | Non Specified - Dual Edge | Female | 2 | 28 | Green | 2 | Semi Bellows | Solder | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | Board Edge Straddle Mount | Copper Alloy | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 14 | Dual | Gold | 4-40 Flush Mount Threaded Insert Top Opening | ||
EDAC Inc. | Card Extender | Polyester Thermoplastic | Non Specified - Dual Edge | Female | 2 | 28 | Green | 2 | Semi Bellows | Solder | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | Board Edge Straddle Mount | Copper Alloy | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 14 | Dual | Gold | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm |
EDAC Inc. | Polyester Thermoplastic | Non Specified - Dual Edge | Female | 2 | 28 | Green | 2 | Semi Bellows | Solder Eyelet(s) | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | Copper Alloy | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 14 | Dual | Gold | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | ||
EDAC Inc. | Polyester Thermoplastic | Non Specified - Dual Edge | Female | 2 | 28 | Green | 2 | Semi Bellows | Solder | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | Panel Mount Through Hole | Copper Alloy | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 14 | Dual | Gold | 4-40 Flush Mount Threaded Insert Top Opening |
