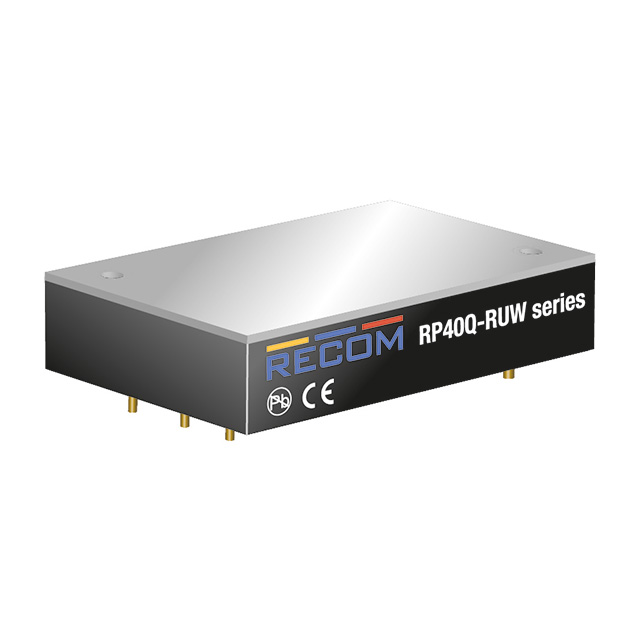

RP40Q-11012SRUW/N-HC

Active

RECOM Power

ISOLATED THROUGH HOLE DC/DC CONVERTER, RAILWAY, QUARTER BRICK, 12:1, 40 W, 1 OUTPUT, 12 V

Search across all available documentation for this part.

Active

RECOM Power

ISOLATED THROUGH HOLE DC/DC CONVERTER, RAILWAY, QUARTER BRICK, 12:1, 40 W, 1 OUTPUT, 12 V

Technical Specifications

Parameters and characteristics for this part

Specification	RP40Q-11012SRUW/N-HC

Applications	Railway, ITE (Commercial)
Current - Output (Max) [Max]	3.33 A
Efficiency	90 %
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	105 C
Operating Temperature [Min]	-40 °C
Package / Case	Quarter Brick
Power (Watts)	40 W
Size / Dimension [x]	2.28 in
Size / Dimension [x]	57.9 mm
Size / Dimension [y]	1.45 in
Size / Dimension [y]	36.8 mm
Size / Dimension [z]	25.4 mm
Size / Dimension [z]	1 "
Supplier Device Package	Quarter Brick
Type	Isolated Module
Voltage - Input (Max) [Max]	160 V
Voltage - Input (Min) [Min]	16 V
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

Isolated DC/DC Converters - Through Hole 40W 16-160Vin 12Vout 3.33A

Part	Supplier Device Package	Package / Case	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Applications	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Features	Voltage - Output 1	Power (Watts)	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Isolation	Current - Output (Max) [Max]	Efficiency	Type
RECOM Power RP40Q-11012SRUW/N-HC	Quarter Brick	Quarter Brick	Through Hole	-40 °C	105 C	1	ITE (Commercial) Railway	16 V	160 V	OCP OTP OVP Remote On/Off SCP UVLO	12 V	40 W	25.4 mm	1.45 in	36.8 mm	2.28 in	57.9 mm	1 "	3000 V	3.33 A	90 %	Isolated Module
RECOM Power RP40Q-11005SRUW/P-HC	Quarter Brick	Quarter Brick	Through Hole	-40 °C	105 C	1	ITE (Commercial) Railway	16 V	160 V	OCP OTP OVP Remote On/Off SCP UVLO	5 V	40 W	25.4 mm	1.45 in	36.8 mm	2.28 in	57.9 mm	1 "	3000 V	8 A	91 %	Isolated Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated DC/DC Converters - Through Hole 40W 16-160Vin 12Vout 3.33A
