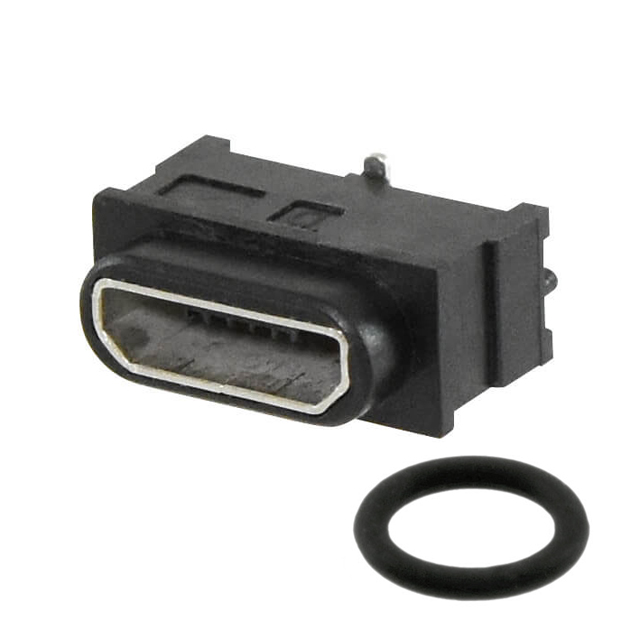

UJ2-MIBV-4-SMT-TR-67
ActiveCUI Devices
USB JACK 2.0 MICRO B TYPE IP67 5
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UJ2-MIBV-4-SMT-TR-67
ActiveCUI Devices
USB JACK 2.0 MICRO B TYPE IP67 5
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UJ2-MIBV-4-SMT-TR-67 |
|---|---|
| Connector Type | USB - micro B |
| Contact Finish | Gold |
| Current Rating (Amps) | 1.8 A, 0.5 A |
| Features | Solder Retention |
| Gender | Receptacle |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insulation Color | Black |
| Mating Cycles | 10000 |
| Mounting Feature | Vertical |
| Mounting Type | Surface Mount |
| Number of Contacts | 5 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shell/Shielding Material | Stainless, Steel |
| Shielding | Shielded |
| Specifications | USB 2.0 |
| Termination | Solder |
| Voltage - Rated | 30 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.40 | |
| 10 | $ 3.08 | |||
| 25 | $ 2.92 | |||
| 50 | $ 2.85 | |||
| 100 | $ 2.72 | |||
| 250 | $ 2.38 | |||
| Digi-Reel® | 1 | $ 3.40 | ||
| 10 | $ 3.08 | |||
| 25 | $ 2.92 | |||
| 50 | $ 2.85 | |||
| 100 | $ 2.72 | |||
| 250 | $ 2.38 | |||
| Tape & Reel (TR) | 800 | $ 2.47 | ||
| 1600 | $ 2.23 | |||
| 2400 | $ 2.15 | |||
Description
General part information
UJ2-MIBV Series
USB - micro B USB 2.0 Receptacle Connector 5 Position Surface Mount
Documents
Technical documentation and resources
