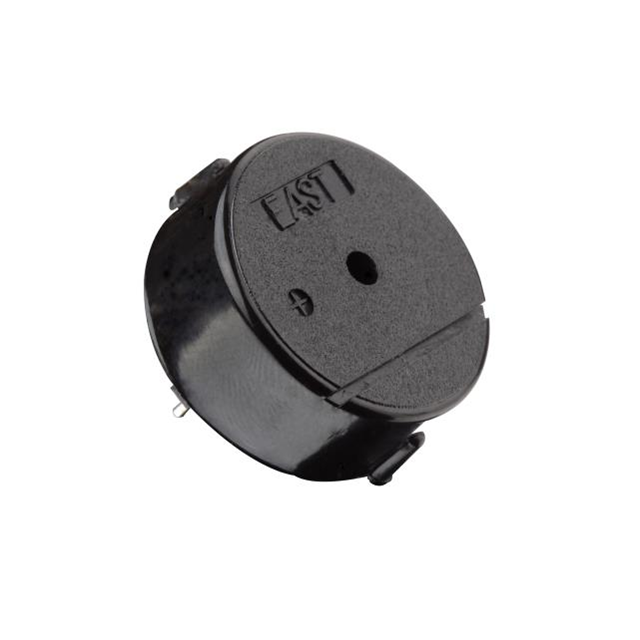

EFM-260R
ActiveEast Electronics
BUZZER 12V 26MM TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EFM-260R
ActiveEast Electronics
BUZZER 12V 26MM TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EFM-260R |
|---|---|
| Current - Supply | 15 mA |
| Frequency | 3 kHz |
| Height - Seated (Max) | 10.7 mm |
| Height - Seated (Max) [Max] [z] | 0.421 in |
| Mounting Type | Through Hole |
| Operating Mode | Continuous |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Size / Dimension | 26 mm |
| Size / Dimension [diameter] | 1.024 in |
| Sound Pressure Level (SPL) | 85 dB |
| Termination | PC Pins |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 24 V |
| Voltage Range [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.64 | |
| 100 | $ 1.74 | |||
| 1000 | $ 1.43 | |||
Description
General part information
EFM-260 Series
Buzzers 12 V 15mA 3kHz 85dB @ 12V, 30cm Through Hole PC Pins
