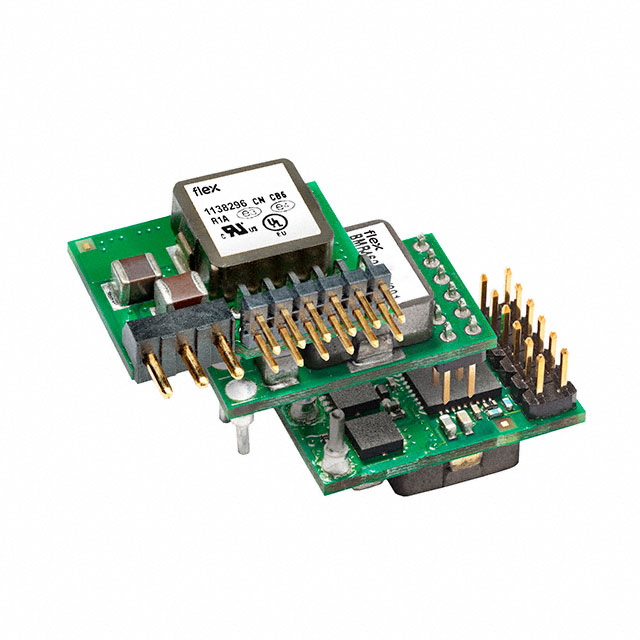

BMR4622002/001

Obsolete

Flex Power Modules

DC DC CONVERTER 0.6-5V 60W

Search across all available documentation for this part.

Obsolete

Flex Power Modules

DC DC CONVERTER 0.6-5V 60W

Technical Specifications

Parameters and characteristics for this part

Specification	BMR4622002/001

Applications	ITE (Commercial)
Approval Agency	CB, UL, IEC, TUV, CSA
Control Features	Active Low, Enable
Current - Output (Max) [Max]	12 A
Efficiency	95.7 %
Features	Remote Sense, Adjustable Output, PMBus™, Remote On/Off
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Package / Case	15-SIP Module
Power (Watts)	60 W
Size / Dimension [x]	20.8 mm
Size / Dimension [x]	0.82 "
Size / Dimension [y]	7 mm
Size / Dimension [y]	0.28 in
Size / Dimension [z]	15.6 mm
Size / Dimension [z]	0.61 "
Standard Number	62368-1
Type	Non-Isolated PoL Module, Digital
Voltage - Input (Max) [Max]	14 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Output 1 [Max]	5 V
Voltage - Output 1 [Min]	0.6 V

Part	Efficiency	Applications	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Control Features	Approval Agency	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Package / Case	Voltage - Input (Min) [Min]	Features	Power (Watts)	Voltage - Input (Max) [Max]	Standard Number	Type	Mounting Type	Size / Dimension [y]	Size / Dimension [z]
Flex Power Modules BMR4622002/001	95.7 %	ITE (Commercial)	12 A	7 mm	20.8 mm	15.6 mm	0.28 in	0.82 "	0.61 "	Active Low Enable	CB CSA IEC TUV UL	5 V	0.6 V	-40 °C	120 °C	1	15-SIP Module	4.5 V	Adjustable Output PMBus™ Remote On/Off Remote Sense	60 W	14 V	62368-1	Non-Isolated PoL Module Digital	Through Hole
Flex Power Modules BMR4621002/001	95.7 %	ITE (Commercial)	12 A	12.7 mm	21 mm	8.2 mm	0.5 in	0.83 "	0.32 "	Active High Enable	CB CSA IEC TUV UL	5 V	0.6 V	-40 °C	120 °C	1	15-SMD Module	4.5 V	Adjustable Output PMBus™ Remote On/Off Remote Sense	60 W	14 V	62368-1	Non-Isolated PoL Module Digital	Surface Mount
Flex Power Modules BMR4620002/001	95.7 %	ITE (Commercial)	12 A		21 mm		0.5 in	0.83 "	0.28 "	Active Low Enable	CB CSA IEC TUV UL	5 V	0.6 V	-40 °C	120 °C	1	15-DIP Module	4.5 V	Adjustable Output PMBus™ Remote On/Off Remote Sense	60 W	14 V	62368-1	Non-Isolated PoL Module Digital	Through Hole	12.7 mm	7.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Non-Isolated PoL Module, Digital DC DC Converter 1 Output 0.6 ~ 5V 12A 4.5V - 14V Input
