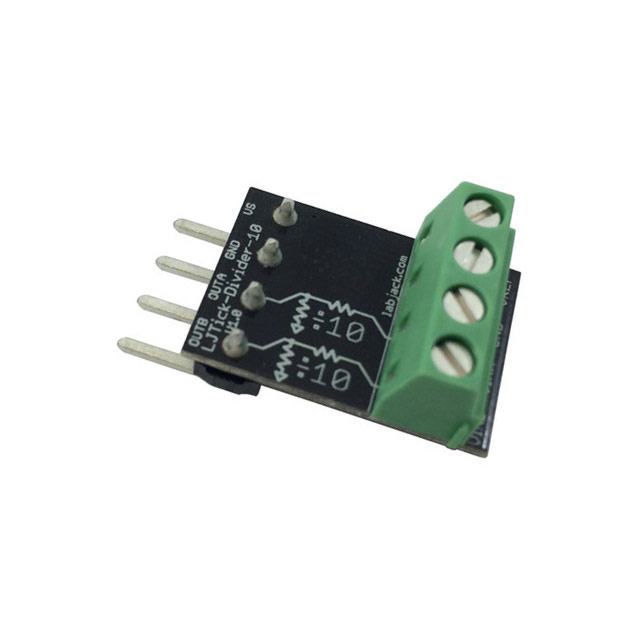

LJTICK-DIVIDER-10

Active

Labjack Corporation

SIGNAL CONDITIONER ANLG DIVIDE B

Search across all available documentation for this part.

Active

Labjack Corporation

SIGNAL CONDITIONER ANLG DIVIDE B

Technical Specifications

Parameters and characteristics for this part

Specification	LJTICK-DIVIDER-10

Accessory Type	Voltage Divider, Option Card
For Use With/Related Products	UE9 Series, T4, U3, U6, T7
Specifications	0.1 Ratio

Part	Specifications	Accessory Type	For Use With/Related Products	Specifications
Labjack Corporation LJTICK-DIVIDER-5	0.2 x	Option Card Voltage Divider	T4 T7 U3 U6 UE9 Series
Labjack Corporation LJTICK-RESISTANCE-1K	1 kOhm	Option Card Voltage Divider	T4 T7 U3 U6 UE9 Series
Labjack Corporation LJTICK-VREF-41	4.096 VDC	Option Card Voltage Reference	T4 T7 U3 U6 UE9 Series
Labjack Corporation LJTICK-VREF-25	2.5 VDC	Option Card Voltage Reference	T4 T7 U3 U6 UE9 Series
Labjack Corporation LJTICK-LVDIGITALIO		Option Card Voltage Regulation	T4 T7 U3 U6 UE9 Series
Labjack Corporation LJTICK-DIVIDER-10	0.1 Ratio	Option Card Voltage Divider	T4 T7 U3 U6 UE9 Series
Labjack Corporation LJTICK-RESISTANCE-100K	100 kOhm	Option Card Voltage Divider	T4 T7 U3 U6 UE9 Series
Labjack Corporation LJTICK-INAMP		Option Card Signal Amplifier	T4 T7 U3 U6 UE9 Series	2 Channel
Labjack Corporation LJTICK-OUTBUFF		Option Card Output Buffer	T4 T7 U3 U6 UE9 Series
Labjack Corporation LJTICK-RELAYDRIVER		Option Card Relay Driver	T4 T7 U3 U6 UE9 Series	2 Channel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 51.88

General part information

Option Card, Voltage Divider T4, T7, U3, U6, UE9 Series
