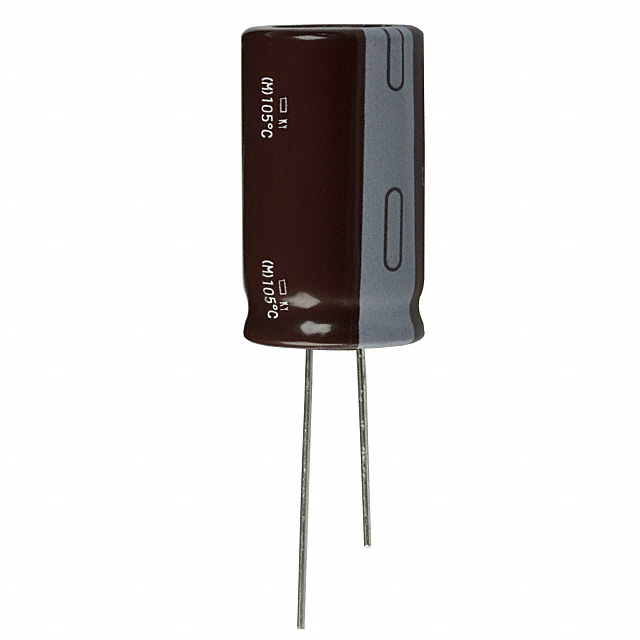

EKY-350ELL272MMN3S

Active

Chemi-Con

CAP ALUM 2700UF 20% 35V RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EKY-350ELL272MMN3S

Active

Chemi-Con

CAP ALUM 2700UF 20% 35V RADIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EKY-350ELL272MMN3S

Applications	General Purpose
Capacitance	2700 µF
Height - Seated (Max) [Max] [z]	1.299 in
Height - Seated (Max) [Max] [z]	33 mm
Impedance	15 mOhms
Lead Spacing	7.5 mm
Lead Spacing	0.295 in
Lifetime @ Temp.	10000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ Low Frequency	3.1275 A
Size / Dimension [diameter]	0.709 "
Size / Dimension [diameter]	18 mm
Tolerance	20 %
Voltage - Rated	35 V

EKY-350E Series

Part	Impedance	Height - Seated (Max)	Height - Seated (Max) [Max]	Capacitance	Polarization	Mounting Type	Tolerance	Lifetime @ Temp.	Voltage - Rated	Size / Dimension [diameter]	Size / Dimension [diameter]	Ripple Current @ High Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Lead Spacing	Lead Spacing	Applications	Ripple Current @ Low Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Chemi-Con EKY-350ELL221MJC5S	80 mOhms	14 mm	0.551 "	220 µF	Polar	Through Hole	20 %	7000 Hrs	35 V	10 mm	0.394 in	865 mA	-40 °C	105 ░C	Radial Can	5 mm	0.197 in	General Purpose	432.5 mA
Chemi-Con EKY-350ELL681MK20S	35 mOhms		0.846 in	680 µF	Polar	Through Hole	20 %	10000 Hrs	35 V	12.5 mm	0.492 in		-40 °C	105 ░C	Radial Can	5 mm	0.197 in	General Purpose	1.14 A	21.5 mm
Chemi-Con EKY-350ETD331MJ16S	60 mOhms		0.689 in	330 µF	Polar	Through Hole	20 %	7000 Hrs	35 V	10 mm	0.394 in	1.21 A	-40 °C	105 ░C	Radial Can	5 mm	0.197 in	General Purpose	605 mA	17.5 mm
Chemi-Con EKY-350ELL272MMN3S	15 mOhms			2700 µF	Polar	Through Hole	20 %	10000 Hrs	35 V	18 mm	0.709 "		-40 °C	105 ░C	Radial Can	7.5 mm	0.295 in	General Purpose	3.1275 A		1.299 in	33 mm
Chemi-Con EKY-350ETD471MJ20S	46 mOhms		0.846 in	470 µF	Polar	Through Hole	20 %	7000 Hrs	35 V	10 mm	0.394 in	1.4 A	-40 °C	105 ░C	Radial Can	5 mm	0.197 in	General Purpose	700 mA	21.5 mm
Chemi-Con EKY-350ETE102MK25S	27 mOhms			1000 µF	Polar	Through Hole	20 %	10000 Hrs	35 V	12.5 mm	0.492 in	2.23 A	-40 °C	105 ░C	Radial Can	5 mm	0.197 in	General Purpose	1.338 A		1.043 in	26.5 mm
Chemi-Con EKY-350ELL330ME11D	580 mOhms		0.492 in	33 ÁF	Polar	Through Hole	20 %	5000 Hrs	35 V	5 mm	0.197 "	210 mA	-40 °C	105 ░C	Radial Can	2 mm	0.079 in	General Purpose	84 mA	12.5 mm
Chemi-Con EKY-350ELL681MJ30S	31 mOhms		1.24 in	680 µF	Polar	Through Hole	20 %	7000 Hrs	35 V	10 mm	0.394 in	1.91 A	-40 °C	105 ░C	Radial Can	5 mm	0.197 in	General Purpose	1.146 A	31.5 mm
Chemi-Con EKY-350ELL332MMP1S	14 mOhms			3.3 mF	Polar	Through Hole	20 %	10000 Hrs	35 V	18 mm	0.709 "	4.22 A	-40 °C	105 ░C	Radial Can	7.5 mm	0.295 in	General Purpose	3.165 A		1.457 in	37 mm
Chemi-Con EKY-350ELL102MM15S	43 mOhms			1000 µF	Polar	Through Hole	20 %	10000 Hrs	35 V	18 mm	0.709 "	2.21 A	-40 °C	105 ░C	Radial Can	7.5 mm	0.295 in	General Purpose	1.326 A		16.51 mm	16.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.83
		10	$ 1.38
		50	$ 1.26
		250	$ 0.97
		500	$ 0.82
		1000	$ 0.72
		2500	$ 0.68
		5000	$ 0.65

Description

General part information

EKY-350E Series

2700 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
