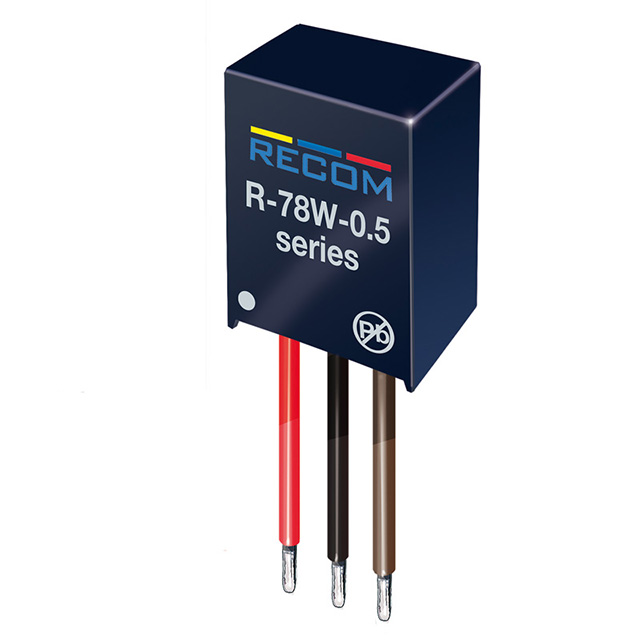

R-78W3.3-0.5

Active

RECOM Power

NON-ISOLATED DC/DC CONVERTERS 4.75-32VIN 3.3VOUT 500MA

Search across all available documentation for this part.

Active

RECOM Power

NON-ISOLATED DC/DC CONVERTERS 4.75-32VIN 3.3VOUT 500MA

Technical Specifications

Parameters and characteristics for this part

Specification	R-78W3.3-0.5

Applications	ITE (Commercial)
Current - Output (Max) [Max]	500 mA
Efficiency	90 %
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Size / Dimension [x]	0.69 in
Size / Dimension [x]	17.5 mm
Size / Dimension [y]	11.5 mm
Size / Dimension [y]	0.45 in
Size / Dimension [z]	8.5 mm
Size / Dimension [z]	0.33 in
Type	Linear Regulator Replacement
Voltage - Input (Max) [Max]	32 V
Voltage - Input (Min) [Min]	6.5 V
Voltage - Output 1	3.3 V

Non-Isolated DC/DC Converters 4.75-32Vin 3.3Vout 500mA

Part	Number of Outputs	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Input (Max) [Max]	Voltage - Output 1	Efficiency	Applications	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Mounting Type
RECOM Power R-78W3.3-0.5	1	11.5 mm	8.5 mm	0.69 in	0.33 in	0.45 in	17.5 mm	32 V	3.3 V	90 %	ITE (Commercial)	6.5 V	500 mA	85 °C	-40 °C	Linear Regulator Replacement	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Non-Isolated DC/DC Converters 4.75-32Vin 3.3Vout 500mA
