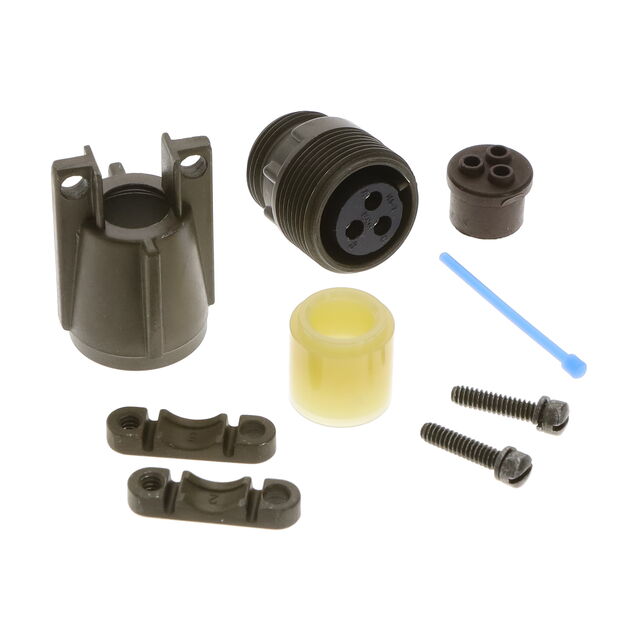

MS3101F14S-1S

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED RECEPT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MS3101F14S-1S

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED RECEPT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3101F14S-1S

Applications	Military, Marine
Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	13 A
Features	Cable Clamp
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	14S-1
Shielding	Unshielded

MS3101F14 Series

Part	Qualification	Shell Material	Applications	Contact Material	Ingress Protection	Primary Material	Grade	Color	Shell Finish	Current Rating (Amps)	Orientation	Insert Material	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Shell Size - Insert	Connector Type	Features	Mounting Type	Cable Opening [custom]	Cable Opening [custom]	Number of Positions	Voltage Rating
Amphenol Industrial Operations MS3101F14S-12P
Amphenol Industrial Operations MS3101F14S-1S	MIL-DTL-5015	Aluminum Alloy	Marine Military	Copper Alloy	Environment Resistant	Metal	Military	Olive Drab	Olive Drab Chromate over Cadmium	13 A	N	Neoprene	Unshielded	-55 °C	125 °C	Silver	14S-1	Receptacle Female Sockets	Cable Clamp	Free Hanging (In-Line)
Amphenol Industrial Operations MS3101F14S-13P
Amphenol Industrial Operations MS3101F14S-7S	MIL-DTL-5015	Aluminum Alloy	Marine Military	Copper Alloy	Environment Resistant	Metal	Military	Olive Drab	Olive Drab Chromate over Cadmium		N	Neoprene	Unshielded	-55 °C	125 °C	Silver	14S-7	Receptacle Female Sockets	Backshell Cable Clamp	Free Hanging (In-Line)	10.3 mm	0.406 in
Amphenol Industrial Operations MS3101F14S-9P	MIL-DTL-5015	Aluminum Alloy	Marine Military	Copper Alloy	Environment Resistant	Metal	Military	Olive Drab	Olive Drab Chromate over Cadmium	13 A	N	Neoprene	Unshielded	-55 °C	125 °C	Silver	14S-9	Male Pins Receptacle	Backshell Cable Clamp	Free Hanging (In-Line)			2
Amphenol Industrial Operations MS3101F14S-5P	MIL-DTL-5015	Aluminum Alloy	Marine Military	Copper Alloy	Environment Resistant	Metal	Military	Olive Drab	Olive Drab Chromate over Cadmium	13 A	N	Neoprene	Unshielded	-55 °C	125 °C	Silver	14S-5	Male Pins Receptacle	Strain Relief	Free Hanging (In-Line)				200 VAC 250 VDC
