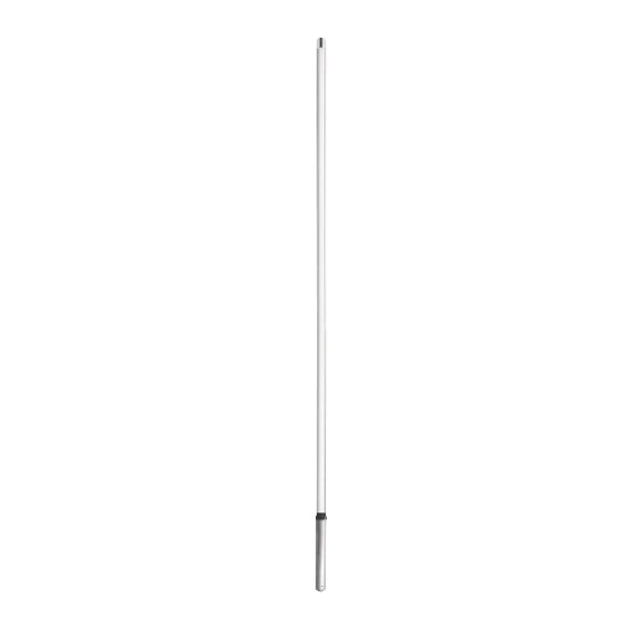

4250.09-875-T0
ActiveAmphenol Procom
9DBD COLINEAR 0DEG DOWNTILT 79
Deep-Dive with AI
Search across all available documentation for this part.
4250.09-875-T0
ActiveAmphenol Procom
9DBD COLINEAR 0DEG DOWNTILT 79
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 4250.09-875-T0 |
|---|---|
| Antenna Type | Whip, Straight |
| Frequency (Center/Band) | 875 MHz |
| Frequency Group [Max] | 1 GHz |
| Frequency Group [Min] | 300 MHz |
| Frequency Range [Max] | 960 MHz |
| Frequency Range [Min] | 790 MHz |
| Gain | 11.2 dBi |
| Height (Max) [Max] | 151.575 in |
| Height (Max) [Max] | 385 cm |
| Ingress Protection | IP56 |
| Mounting Type | Bracket Mount |
| Number of Bands | 1 |
| Power - Max [Max] | 480 W |
| Termination | 7/16-DIN Female |
| VSWR | 1.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 2365.67 | |
Description
General part information
4250.09 Series
RF ANTENNA Whip, Straight 7/16-DIN Female Bracket Mount
Documents
Technical documentation and resources
No documents available
