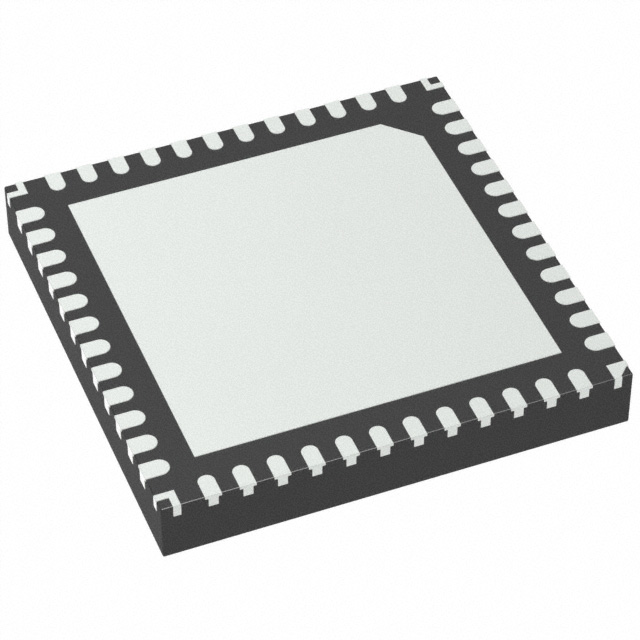

TB67S285FTG,EL
ActiveToshiba Semiconductor and Storage
IC MOTOR DRIVER BIPOLAR 48VQFN
Deep-Dive with AI
Search across all available documentation for this part.
TB67S285FTG,EL
ActiveToshiba Semiconductor and Storage
IC MOTOR DRIVER BIPOLAR 48VQFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TB67S285FTG,EL |
|---|---|
| Applications | General Purpose |
| Current - Output | 3 A |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Interface | Parallel, Serial |
| Motor Type - Stepper | Bipolar |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 C |
| Operating Temperature [Min] | -20 °C |
| Output Configuration | Half Bridge (8) |
| Package / Case | 48-VFQFN Exposed Pad |
| Step Resolution | 0.125, 0.03125, 0.25, 1, 0.5, 0.0625 |
| Supplier Device Package | 48-VQFN (7x7) |
| Technology | Power MOSFET |
| Voltage - Load [Max] | 47 V |
| Voltage - Load [Min] | 10 V |
| Voltage - Supply [Max] | 5.25 V |
| Voltage - Supply [Min] | 4.75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.73 | |
| 10 | $ 3.76 | |||
| 25 | $ 3.24 | |||
| 100 | $ 2.66 | |||
| 250 | $ 2.37 | |||
| 500 | $ 2.19 | |||
| 1000 | $ 2.10 | |||
| Digi-Reel® | 1 | $ 5.73 | ||
| 10 | $ 3.76 | |||
| 25 | $ 3.24 | |||
| 100 | $ 2.66 | |||
| 250 | $ 2.37 | |||
| 500 | $ 2.19 | |||
| 1000 | $ 2.10 | |||
| Tape & Reel (TR) | 4000 | $ 2.10 | ||
Description
General part information
TB67S285 Series
Bipolar Motor Driver Power MOSFET Parallel, Serial 48-VQFN (7x7)
