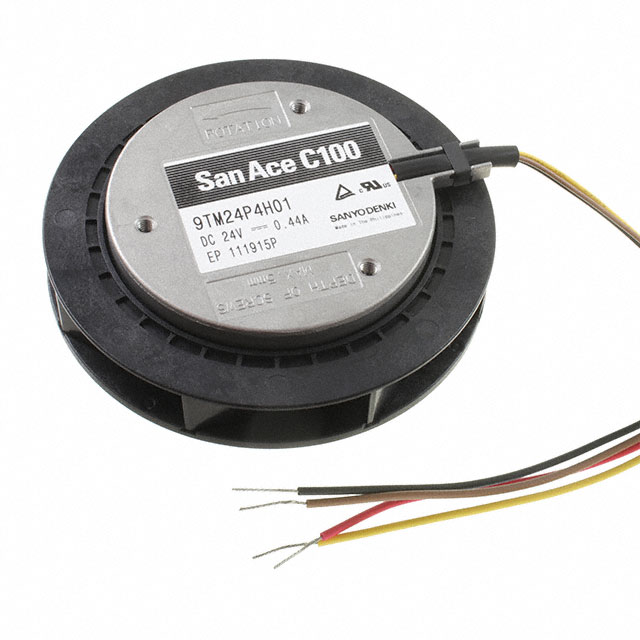

9TM24P4H01
ActiveSanyo Denki America Inc.
FAN IMP MTRZD 100X25MM 24VDC
Deep-Dive with AI
Search across all available documentation for this part.
9TM24P4H01
ActiveSanyo Denki America Inc.
FAN IMP MTRZD 100X25MM 24VDC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9TM24P4H01 |
|---|---|
| Air Flow | 62.5 CFM |
| Air Flow | 1.75 mł/min |
| Approval Agency | CSA, TUV, UL |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.44 A |
| Fan Type | Motorized Impellers |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Lifetime @ Temp. | 40000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Aluminum |
| Noise | 60 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 10.56 W |
| RPM | 6400 RPM |
| Size / Dimension [diameter] | 100 mm |
| Static Pressure | 2.25 in H2O |
| Static Pressure | 560 Pa |
| Termination | 4 Wire Leads |
| Voltage - Rated | 24 VDC |
| Voltage Range [Max] | 26.4 VDC |
| Voltage Range [Min] | 21.6 VDC |
| Weight | 150.14 g |
| Weight | 0.331 lb |
| Width [y] | 25 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 58.84 | |
| 20 | $ 53.23 | |||
| 40 | $ 49.73 | |||
| 60 | $ 49.03 | |||
| 100 | $ 45.18 | |||
Description
General part information
9TM24 Series
Fan Motorized Impellers 24VDC Round - 100mm Dia Ball 62.5 CFM (1.75m³/min) 4 Wire Leads
