Z32F06410AKS

Obsolete

Zilog

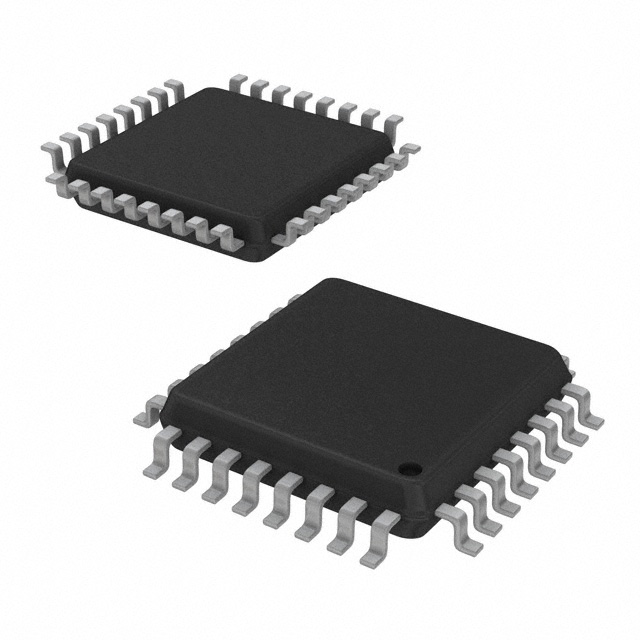

IC MCU 32BIT 64KB FLASH 32LQFP

Search across all available documentation for this part.

Obsolete

Zilog

IC MCU 32BIT 64KB FLASH 32LQFP

Technical Specifications

Parameters and characteristics for this part

Specification	Z32F06410AKS

Connectivity	I2C, SPI, UART/USART
Core Processor	ARM® Cortex®-M3
Core Size	32-Bit Single-Core
Data Converters [custom]	12 b
Data Converters [custom]	8
Mounting Type	Surface Mount
Number of I/O	30 I/O
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal
Package / Case	32-LQFP
Peripherals	Brown-out Detect/Reset, POR, PWM, LVD, WDT, DMA
Program Memory Size	64 KB
Program Memory Type	FLASH
RAM Size	8 K
Speed	48 MHz
Supplier Device Package	32-LQFP (7x7)
Voltage - Supply (Vcc/Vdd) [Max]	5.5 V
Voltage - Supply (Vcc/Vdd) [Min]	3 V

Part	Program Memory Size	Core Size	Peripherals	Connectivity	Mounting Type	Speed	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Oscillator Type	Number of I/O	Core Processor	Package / Case	Data Converters [custom]	Data Converters [custom]	RAM Size	Supplier Device Package	Program Memory Type
Zilog Z32F06410AKS	64 KB	32-Bit Single-Core	Brown-out Detect/Reset DMA LVD POR PWM WDT	I2C SPI UART/USART	Surface Mount	48 MHz	5.5 V	3 V	85 °C	-40 °C	Internal	30 I/O	ARM® Cortex®-M3	32-LQFP	12 b	8	8 K	32-LQFP (7x7)	FLASH

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

ARM® Cortex®-M3 ZNEO32! Microcontroller IC 32-Bit Single-Core 48MHz 64KB (64K x 8) FLASH 32-LQFP (7x7)
