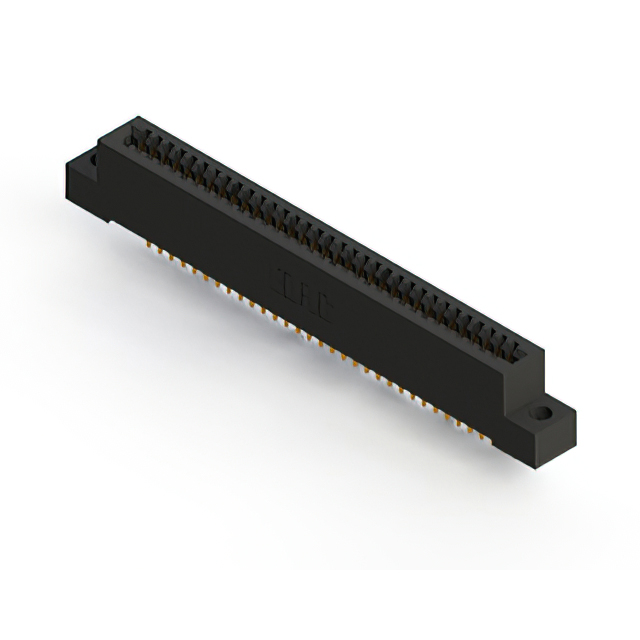

892-033-540-104
ActiveEDAC Inc.
CONN EDGE SINGLE FML 33POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
892-033-540-104
ActiveEDAC Inc.
CONN EDGE SINGLE FML 33POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 892-033-540-104 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 33 |
| Number of Positions/Bay/Row [custom] | 33 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
892-033 Series
| Part | Contact Finish Thickness | Contact Finish Thickness | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Pitch [x] | Pitch [x] | Termination | Read Out | Card Type | Material - Insulation | Number of Positions | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination Rows | Color | Contact Material | Number of Positions/Bay/Row [custom] | Number of Rows | Mounting Type | Gender | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 10 Áin | 0.25 Ám | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | 2.54 mm | 0.1 in | Wire Wrap | Single | Non Specified - Single Edge | Polyphenylene Sulfide (PPS) | 33 | Cantilever | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Black | Copper Alloy | 33 | 1 | Through Hole | Female | Gold |
EDAC Inc. | 10 Áin | 0.25 Ám | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | 2.54 mm | 0.1 in | Solder Eyelet(s) | Single | Non Specified - Single Edge | Polyphenylene Sulfide (PPS) | 33 | Cantilever | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Black | Copper Alloy | 33 | 1 | Through Hole | Female | Gold |
EDAC Inc. | 10 Áin | 0.25 Ám | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | 2.54 mm | 0.1 in | Wire Wrap | Single | Non Specified - Single Edge | Polyphenylene Sulfide (PPS) | 33 | Cantilever | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Black | Copper Alloy | 33 | 1 | Through Hole | Female | Gold |
EDAC Inc. | 10 Áin | 0.25 Ám | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | 2.54 mm | 0.1 in | Solder | Single | Non Specified - Single Edge | Polyphenylene Sulfide (PPS) | 33 | Cantilever | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Black | Copper Alloy | 33 | 1 | Through Hole Right Angle | Female | Gold |
EDAC Inc. | 10 Áin | 0.25 Ám | Flush Mount M3 Threaded Insert Top Opening | 2.54 mm | 0.1 in | Wire Wrap | Single | Non Specified - Single Edge | Polyphenylene Sulfide (PPS) | 33 | Cantilever | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Black | Copper Alloy | 33 | 1 | Through Hole | Female | Gold | ||
EDAC Inc. | 10 Áin | 0.25 Ám | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | 2.54 mm | 0.1 in | Solder | Single | Non Specified - Single Edge | Polyphenylene Sulfide (PPS) | 33 | Cantilever | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Black | Copper Alloy | 33 | 1 | Through Hole | Female | Gold |
EDAC Inc. | 10 Áin | 0.25 Ám | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | 2.54 mm | 0.1 in | Solder | Single | Non Specified - Single Edge | Polyphenylene Sulfide (PPS) | 33 | Cantilever | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Black | Copper Alloy | 33 | 1 | Through Hole | Female | Gold |
EDAC Inc. | 10 Áin | 0.25 Ám | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | 2.54 mm | 0.1 in | Wire Wrap | Single | Non Specified - Single Edge | Polyphenylene Sulfide (PPS) | 33 | Cantilever | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Black | Copper Alloy | 33 | 1 | Through Hole | Female | Gold |
EDAC Inc. | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Solder | Single | Non Specified - Single Edge | Polyphenylene Sulfide (PPS) | 33 | Cantilever | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Black | Copper Alloy | 33 | 1 | Through Hole Right Angle | Female | Gold | |||
EDAC Inc. | 10 Áin | 0.25 Ám | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | 2.54 mm | 0.1 in | Solder | Single | Non Specified - Single Edge | Polyphenylene Sulfide (PPS) | 33 | Cantilever | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Black | Copper Alloy | 33 | 1 | Through Hole | Female | Gold |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 105.22 | |
Description
General part information
892-033 Series
33 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
