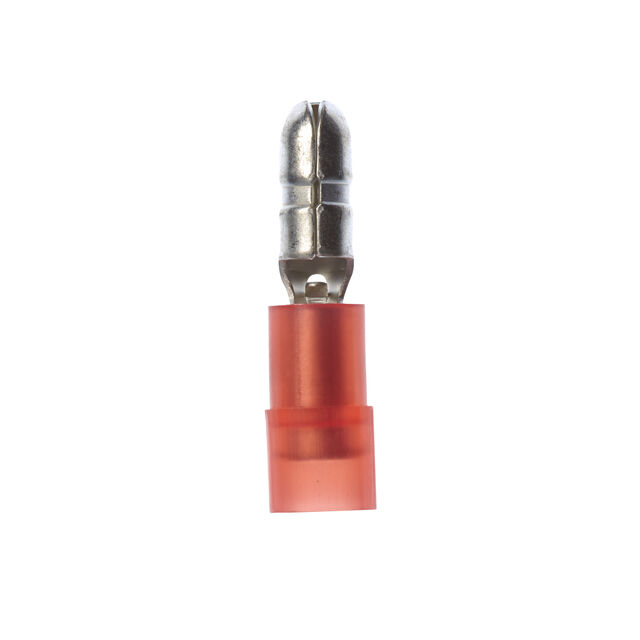

MNG18-156DMK-A

Active

3M (TC)

NYLON INSULATED W/INSULATION GRIP MALE DISCONNECT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MNG18-156DMK-A

Active

3M (TC)

NYLON INSULATED W/INSULATION GRIP MALE DISCONNECT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MNG18-156DMK-A

Color	Red
Contact Finish	Tin
Contact Material	Brass
Diameter - Barrel [diameter]	3.96 mm
Diameter - Barrel [diameter]	0.156 in
Insulation	Non-Mating End Insulated
Insulation Diameter	3.81 mm
Insulation Diameter	0.15 in
Length - Overall [x]	22.1 mm
Length - Overall [x]	0.87 in
Material - Insulation	Nylon, Polyamide (PA)
Terminal Type	Pin (Plug), Male
Termination	Crimp
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG

MNG18 Series

Part	Wire Gauge [Max]	Wire Gauge [Min]	Insulation Diameter	Insulation Diameter [diameter]	Mounting Type	Length - Overall [x]	Length - Overall [x]	Contact Finish	Contact Material	Terminal Type	Color	Tab Width	Tab Width	Tab Thickness	Tab Thickness	Insulation	Termination	Gender	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Length - Termination	Length - Termination	Length - Overall	Material - Insulation	Stud/Tab Size	Stud/Tab Size	Width - Outer Edges [y]	Width - Outer Edges [y]	Insulation Diameter	Diameter - Barrel [diameter]	Diameter - Barrel [diameter]
3M (TC) MNG18-250DMX-BOTTLE	22 AWG	17.5 AWG	3.68 mm	0.145 "	Free Hanging (In-Line)	23.37 mm	0.92 "	Tin	Copper ETP	Standard	Red	6.35 mm	0.25 in	0.032 in	0.81 mm	Non-Mating End Insulated	Crimp	Male
3M (TC) MNG18-8FFBX-BOTTLE	22 AWG	17.5 AWG	3.68 mm	0.145 "	Free Hanging (In-Line)		0.84 in	Tin	Copper ETP	Flanged	Red					Insulated	Crimp		0.25 in	6.35 mm	0.44 "	11.18 mm	21.34 mm	Nylon Polyamide (PA)	8 Stud
3M (TC) MNG18-187DFIK	22 AWG	17.5 AWG	3.68 mm	0.145 "	Free Hanging (In-Line)	20.57 mm	0.81 in	Tin	Brass	Standard	Red	4.75 mm	0.187 in	0.02 "	0.51 mm	Fully Insulated	Crimp	Female
3M (TC) MNG18-10FFBK	22 AWG	17.5 AWG	3.68 mm	0.145 "	Free Hanging (In-Line)		0.84 in	Tin	Copper ETP	Flanged	Red					Insulated	Crimp		0.25 in	6.35 mm	0.44 "	11.18 mm	21.34 mm	Nylon Polyamide (PA)		10 Stud
3M (TC) MNG18-6FFB/SX-BOTTLE	22 AWG	17.5 AWG	3.68 mm	0.145 "	Free Hanging (In-Line)		0.84 in	Tin	Copper ETP	Flanged	Red					Insulated	Crimp		0.25 in	6.35 mm	0.44 "	11.18 mm	21.34 mm	Nylon Polyamide (PA)		6 Stud	0.25 "	6.35 mm
3M (TC) MNG18-4FLX-BOTTLE	22 AWG	17.5 AWG	3.68 mm	0.145 "	Free Hanging (In-Line)	22.1 mm	0.87 in	Tin	Copper ETP	Snap Spring	Red					Insulated	Crimp		0.25 in	6.35 mm	0.44 "	11.18 mm		Nylon Polyamide (PA)		4 Stud	0.25 "	6.35 mm
3M (TC) MNG18-156DMK-A	22 AWG	17.5 AWG	0.15 in			22.1 mm	0.87 in	Tin	Brass	Male Pin (Plug)	Red					Non-Mating End Insulated	Crimp							Nylon Polyamide (PA)					3.81 mm	3.96 mm	0.156 in
3M (TC) MNG18-4FB/SK	22 AWG	17.5 AWG	3.68 mm	0.145 "	Free Hanging (In-Line)		0.84 in	Tin	Copper ETP	Standard	Red					Insulated	Crimp		0.25 in	6.35 mm	0.44 "	11.18 mm	21.34 mm	Nylon Polyamide (PA)		4 Stud	0.25 "	6.35 mm
3M (TC) MNG18-187DFIX-BOTTLE	22 AWG	17.5 AWG	3.68 mm	0.145 "	Free Hanging (In-Line)	20.57 mm	0.81 in	Tin	Brass	Standard	Red	4.75 mm	0.187 in	0.02 "	0.51 mm	Fully Insulated	Crimp	Female
3M (TC) MNG18-6FB/SK	22 AWG	17.5 AWG	3.68 mm	0.145 "	Free Hanging (In-Line)		0.84 in	Tin	Copper ETP	Standard	Red					Insulated	Crimp		0.25 in	6.35 mm	0.44 "	11.18 mm	21.34 mm	Nylon Polyamide (PA)		6 Stud	0.25 "	6.35 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.93
		10	$ 0.78
		25	$ 0.75
		50	$ 0.73
		100	$ 0.70
		250	$ 0.64
		500	$ 0.58
		1000	$ 0.51
		3000	$ 0.46
Newark	Each	1000	$ 0.59

Description

General part information

MNG18 Series

Terminal Connector Male, Pin (Plug) 18-22 AWG Crimp Tin
