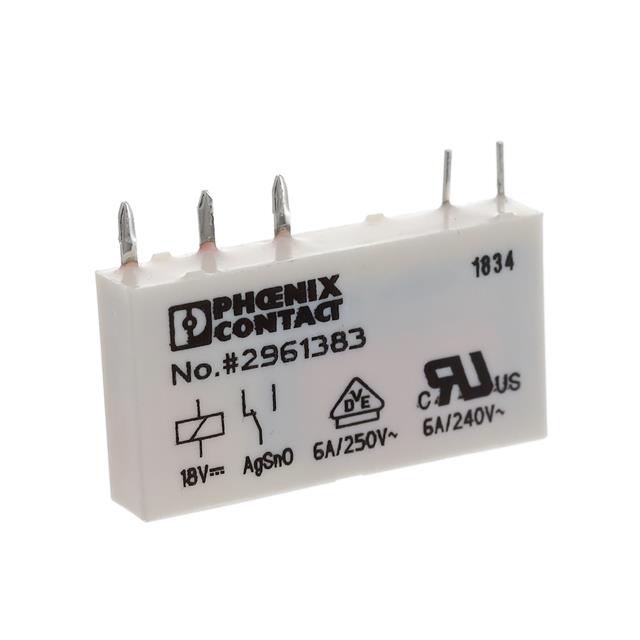

2961383

Active

Phoenix Contact

RELAY GEN PURPOSE SPDT 6A 18V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE SPDT 6A 18V

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Coil Current	Mounting Type	Release Time	Coil Type	Coil Voltage	Contact Material	Contact Form	Termination Style	Contact Rating (Current)	Operate Time	Approval Agency	Relay Type	Coil Resistance	Switching Voltage
Phoenix Contact 2961338	85 °C	-40 °C	4.1 mA	Through Hole	3 ms	Non Latching	110 VDC	Silver Nickel (AgNi)	SPDT (1 Form C)	PC Pin	16 A	7 ms	cULus EAC UR	General Purpose	26.6 kOhms	250 VAC 250 VDC
Phoenix Contact 2961325	85 °C	-40 °C	8.2 mA	Through Hole	3 ms	Non Latching	60 VDC	Silver Nickel (AgNi)	SPDT (1 Form C)	PC Pin	16 A	7 ms	cULus EAC UR	General Purpose	7.34 kOhms	250 VAC 250 VDC
Phoenix Contact 2961383	85 °C	-40 °C	9 mA	Through Hole	2.5 ms	Non Latching	18 VDC	Silver Tin Oxide (AgSnO)	SPDT (1 Form C)	PC Pin	6 A	5 ms	cULus EAC UR	General Purpose	2 kOhms	250 VAC 250 VDC
Phoenix Contact 2961341	85 °C	-40 °C	17 mA	Through Hole	3 ms	Non Latching	24 VDC	Silver Tin Oxide (AgSnO)	SPST-NO (1 Form A)	PC Pin	16 A	8 ms	cULus EAC UR	General Purpose	1440 Ohms	250 VAC 250 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPDT (1 Form C) 18VDC Coil Through Hole
