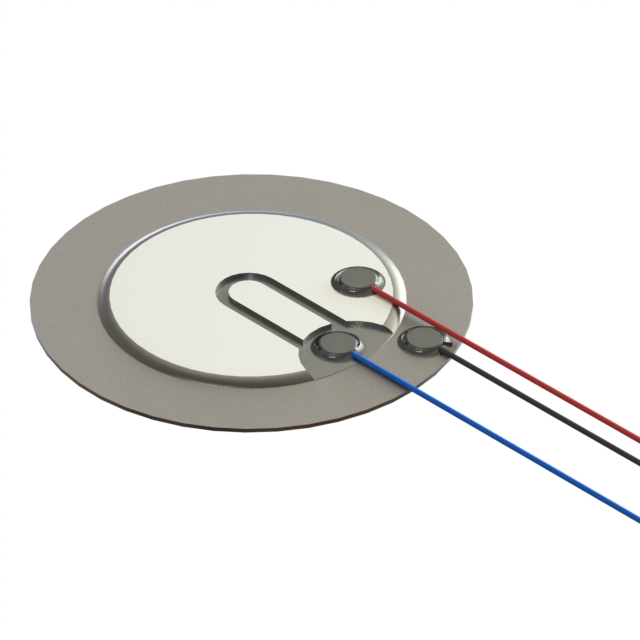

7BB-20-6CL0

Active

Murata Power Solutions Inc.

BUZZER ELEMENT FDBK 6.3KHZ 20MM

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

BUZZER ELEMENT FDBK 6.3KHZ 20MM

Technical Specifications

Parameters and characteristics for this part

Part	Termination	Impedance	Capacitance @ Frequency	Type	Operating Temperature [Min]	Operating Temperature [Max]	Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]
Murata Power Solutions Inc. 7BB-20-6CL0	Wire Leads	500 Ohms	8500 pF	Feedback	-20 C	70 °C	6.3 kHz	20 mm	0.787 in
Murata Power Solutions Inc. 7BB-20-6C	Wire Leads	500 Ohms	8500 pF	Feedback			6.3 kHz	20 mm	0.787 in
Murata Power Solutions Inc. 7BB-15-6	None	800 Ohms	10000 pF	Standard			6 kHz	15 mm	0.591 in
Murata Power Solutions Inc. 7BB-41-2L0	Wire Leads		30000 pF	Standard			2.2 kHz	41 mm	1.614 "
Murata Power Solutions Inc. 7BB-41-2C	Wire Leads	250 Ohms	24000 pF	Feedback			2.2 kHz	41 mm	1.614 "
Murata Power Solutions Inc. 7BB-27-4C	None	200 Ohms	18000 pF	Feedback			4.6 kHz	27 mm	1.063 "
Murata Power Solutions Inc. 7BB-41-2CL0	Wire Leads	350 Ohms	24000 pF	Feedback	-20 C	70 °C	2.2 kHz	41 mm	1.614 "
Murata Power Solutions Inc. 7BB-35-3CL0	Wire Leads	200 Ohms	26000 pF	Feedback	-20 C	70 °C	2.8 kHz	35 mm	1.378 in
Murata Power Solutions Inc. 7BB-35-3L0	Wire Leads	200 Ohms	30000 pF	Standard			2.8 kHz	35 mm	1.378 in
Murata Power Solutions Inc. 7BB-35-3C	None	200 Ohms	26000 pF	Feedback			2.8 kHz	35 mm	1.378 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6.3 kHz Feedback Buzzer Element 0.787" Dia (20.00mm) 500 Ohms
