AFB0724HHB-F00

Active

Delta Electronics

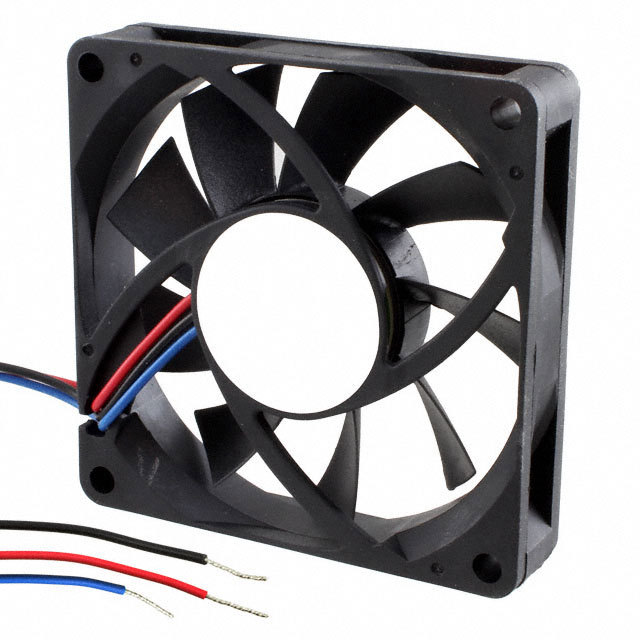

FAN AXIAL 70X15MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFans VDE Cert Fans, Blowers CSA Cert +2

AFB0724HHB-F00

Active

Delta Electronics

FAN AXIAL 70X15MM 24VDC WIRE

Deep-Dive with AI

DocumentsFans VDE Cert Fans, Blowers CSA Cert +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AFB0724HHB-F00

Air Flow	1.05 m³/min
Air Flow	37.5 CFM
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	150 mA
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	38.5 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	3.6 W
RPM	4300 RPM
Size / Dimension [x]	70 mm
Size / Dimension [y]	70 mm
Static Pressure	0.21 in H2O
Static Pressure	52.3 Pa
Termination	3 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	27.6 VDC
Voltage Range [Min]	14 VDC
Weight	47.17 g
Weight	0.104 lb
Width [x]	15 mm

AFB0724 Series

Part	Width [y]	Size / Dimension [y]	Size / Dimension [x]	Material - Frame	Approval Agency	Current Rating (Amps)	Lifetime @ Temp.	Material - Blade	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Voltage - Rated	Fan Type	Noise	Static Pressure	Static Pressure	Weight	Weight	Termination	Features	Bearing Type	Air Flow	Air Flow	Voltage Range [Max]	Voltage Range [Min]	Width [x]	RPM
Delta Electronics AFB0724HH-AR00	25.4 mm	70 mm	70 mm	Plastic	CE CSA UL VDE	0.18 A	70000 Hrs	Plastic	4.32 W	70 °C	70 °C	-10 °C	-10 °C	24 VDC	Tubeaxial	44 dB	77.5 Pa	0.311 in H2O	90.26 g	0.199 lb	3 Wire Leads	Locked Rotor Sensor	Ball	44 CFM	1.23 m³/min	26.4 VDC	14 VDC
Delta Electronics AFB0724HHB-F00		70 mm	70 mm	Plastic	CE CSA UL VDE	150 mA	70000 Hrs	Plastic	3.6 W	70 °C	70 °C	-10 °C	-10 °C	24 VDC	Tubeaxial	38.5 dB	52.3 Pa	0.21 in H2O	47.17 g	0.104 lb	3 Wire Leads	Locked Rotor Protection Speed Sensor (Tach)	Ball	37.5 CFM	1.05 m³/min	27.6 VDC	14 VDC	15 mm	4300 RPM
Delta Electronics AFB0724MB		70 mm	70 mm	Plastic		0.09 A		Plastic	2.16 W					24 VDC	Tubeaxial	31 dB(A)	30.6 Pa	0.123 in H2O	47.17 g	0.104 lb	2 Wire Leads		Ball	28.2 CFM	0.79 mł/min	27.6 VDC	14 VDC	15 mm	3300 RPM
Delta Electronics AFB0724VH-AF00	25.4 mm	70 mm	70 mm	Plastic	CE CSA UL VDE	270 mA	70000 Hrs	Plastic	6.48 W	70 °C	70 °C	-10 °C	-10 °C	24 VDC	Tubeaxial	47.5 dB	107.9 Pa	0.433 in H2O	90.26 g	0.199 lb	3 Wire Leads	Locked Rotor Protection Speed Sensor (Tach)	Ball	52 CFM	1.46 mł/min	26.4 VDC	14 VDC		5500 RPM
Delta Electronics AFB0724M-A	25.4 mm	70 mm	70 mm	Plastic	CE CSA UL VDE	0.09 A		Plastic	2.16 W					24 VDC	Tubeaxial	31.5 dB	34.9 Pa	0.14 in H2O	90.26 g	0.199 lb	2 Wire Leads		Ball	28.9 CFM	0.809 mł/min	27.6 VDC	14 VDC		3100 RPM
Delta Electronics AFB0724LB		70 mm	70 mm	Plastic	CE CSA UL VDE	60 mA		Plastic	1.44 W					24 VDC	Tubeaxial	26.5 dB			47.17 g	0.104 lb	2 Wire Leads		Ball	23.4 CFM	0.655 m³/min	27.6 VDC	14 VDC	15 mm	2800 RPM
Delta Electronics AFB0724H-A	25.4 mm	70 mm	70 mm	Plastic	CE CSA UL VDE		70000 Hrs	Plastic	3.12 W	70 °C	70 °C	-10 °C	-10 °C	24 VDC	Tubeaxial	37.5 dB(A)	54.1 Pa	0.217 in H2O	90.26 g	0.199 lb	2 Wire Leads		Ball	36.3 CFM	1.02 m³/min	26.4 VDC	14 VDC		3900 RPM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 15.71
		10	$ 14.99
		25	$ 13.57
		50	$ 12.50
		224	$ 11.21
		448	$ 10.35
		672	$ 9.64

Description

General part information

AFB0724 Series

Fan Tubeaxial 24VDC Square - 70mm L x 70mm H Ball 37.5 CFM (1.05m³/min) 3 Wire Leads
