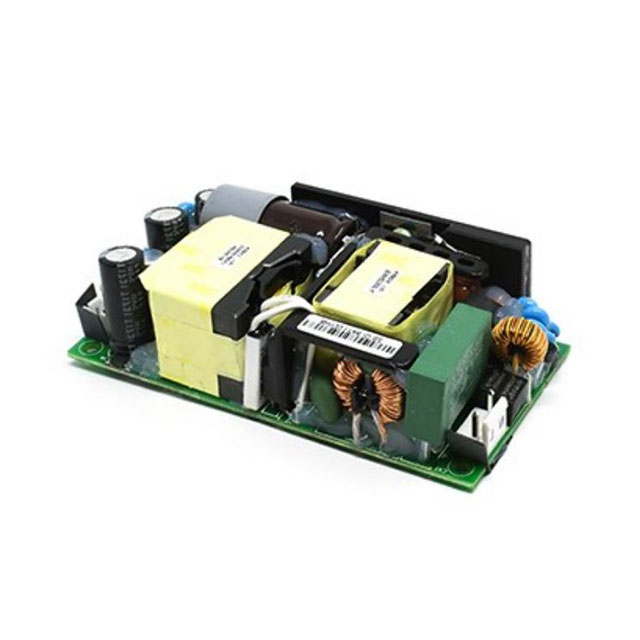

PDAM240-14A-H
ActiveTT Electronics/Power Partners Inc.
AC/DC CONVERTER 24V 160W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PDAM240-14A-H
ActiveTT Electronics/Power Partners Inc.
AC/DC CONVERTER 24V 160W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PDAM240-14A-H |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | CB, cURus, CE |
| Current - Output 1 | 10 A |
| Efficiency | 93 % |
| Features | Standby Output, Universal Input, PFC, DC Input Capable |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 °C |
| Power (Watts) | 160 W |
| Power (Watts) | 240 W |
| Size / Dimension [x] | 104.1 mm |
| Size / Dimension [x] | 4.1 " |
| Size / Dimension [y] | 2.05 in |
| Size / Dimension [y] | 52.1 mm |
| Size / Dimension [z] | 1.09 " |
| Size / Dimension [z] | 27.6 mm |
| Standard Number | 60950-1, 60601-1, 62368-1 |
| Type | Open Frame |
| Voltage - Input [Max] | 370 VDC, 264 VAC |
| Voltage - Input [Min] | 90 VAC, 120 VDC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 67.42 | |
Description
General part information
PDAM240 Series
Open Frame AC DC Converters 1 Output 24V 90 ~ 264 VAC, 120 ~ 370 VDC Input
