S908AB32AH3CFUER

NRND

Freescale Semiconductor - NXP

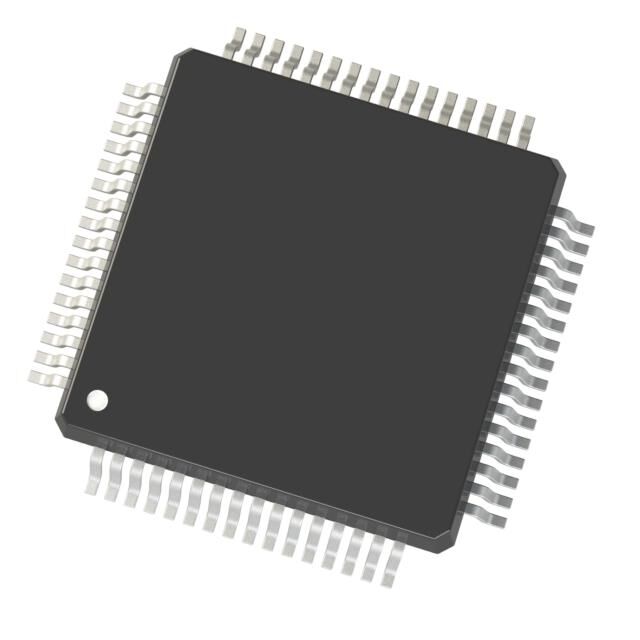

IC MCU 8BIT 32KB FLASH 64QFP

Deep-Dive with AI

Search across all available documentation for this part.

S908AB32AH3CFUER

NRND

Freescale Semiconductor - NXP

IC MCU 8BIT 32KB FLASH 64QFP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	S908AB32AH3CFUER

Connectivity	SPI, SCI
Core Processor	HC08
Core Size	8-Bit
Data Converters	A/D 8x8b
EEPROM Size	512 x 8
Mounting Type	Surface Mount
Number of I/O	51
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal
Package / Case	64-QFP
Peripherals	POR, PWM
Program Memory Size	32 KB
Program Memory Type	FLASH
RAM Size	1 K
Speed	8 MHz
Supplier Device Package	64-QFP (14x14)
Voltage - Supply (Vcc/Vdd) [Max]	5.5 V
Voltage - Supply (Vcc/Vdd) [Min]	4.5 V

S908 Series

Part	Data Converters [custom]	Data Converters [custom]	Program Memory Size	Connectivity	Speed	Mounting Type	Package / Case	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Supplier Device Package	Peripherals	RAM Size	Oscillator Type	Operating Temperature [Max]	Operating Temperature [Min]	Core Processor	Number of I/O	Program Memory Type	Core Size	Data Converters [custom]	RAM Size	EEPROM Size	Data Converters	Package / Case [x]	Package / Case [y]
Freescale Semiconductor - NXP S908QY2E0MDTER
Freescale Semiconductor - NXP S908AZ60AH3CFUE	15	8	60 KB	CANbus SCI SPI	8 MHz	Surface Mount	64-QFP	5.5 V	4.5 V	64-QFP (14x14)	LVD POR PWM	2K x 8	Internal	85 °C	-40 °C	HC08	52	FLASH	8-Bit
Freescale Semiconductor - NXP S908GR8AE1MFAER	6		7.5 KB	SCI SPI	8 MHz	Surface Mount	32-LQFP	5.5 V	2.7 V	32-LQFP (7x7)	LVD POR PWM	384 x 8	Internal	125 °C	-40 °C	HC08	21 I/O	FLASH	8-Bit	8 b
Freescale Semiconductor - NXP S908AB32AH3CFUER			32 KB	SCI SPI	8 MHz	Surface Mount	64-QFP	5.5 V	4.5 V	64-QFP (14x14)	POR PWM		Internal	85 °C	-40 °C	HC08	51	FLASH	8-Bit		1 K	512 x 8	A/D 8x8b
Freescale Semiconductor - NXP S908QY1E0CDTER
Freescale Semiconductor - NXP S908EY16AE0CFJER	8	10	16 KB	LINbus SCI SPI	8 MHz	Surface Mount	32-LQFP	5.5 V	4.5 V	32-LQFP (7x7)	POR PWM		Internal	85 °C	-40 °C	HC08	24	FLASH	8-Bit		512
Freescale Semiconductor - NXP S908QY4E0MDTER
Freescale Semiconductor - NXP S908AB32AE2MFUE			32 KB	SCI SPI	8 MHz	Surface Mount	64-QFP	5.5 V	4.5 V	64-QFP (14x14)	POR PWM		Internal	125 °C	-40 °C	HC08	51	FLASH	8-Bit		1 K	512 x 8	A/D 8x8b
Freescale Semiconductor - NXP S908AB32AH3CFUE			32 KB	SCI SPI	8 MHz	Surface Mount	64-QFP	5.5 V	4.5 V	64-QFP (14x14)	POR PWM		Internal	85 °C	-40 °C	HC08	51	FLASH	8-Bit		1 K	512 x 8	A/D 8x8b
Freescale Semiconductor - NXP S908QB4E0CDTE	8	12 b	4 KB	LINbus SCI	20 MHz	Surface Mount	16-TSSOP	3.6 V	1.8 V	16-TSSOP	LVD POR PWM	256 x 8	Internal	85 °C	-40 °C	HC08	14	FLASH	8-Bit					0.173 in	4.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	750	$ 15.90

Description

General part information

S908 Series

HC08 HC08 Microcontroller IC 8-Bit 8MHz 32KB (32K x 8) FLASH 64-QFP (14x14)

Documents

Technical documentation and resources

No documents available
