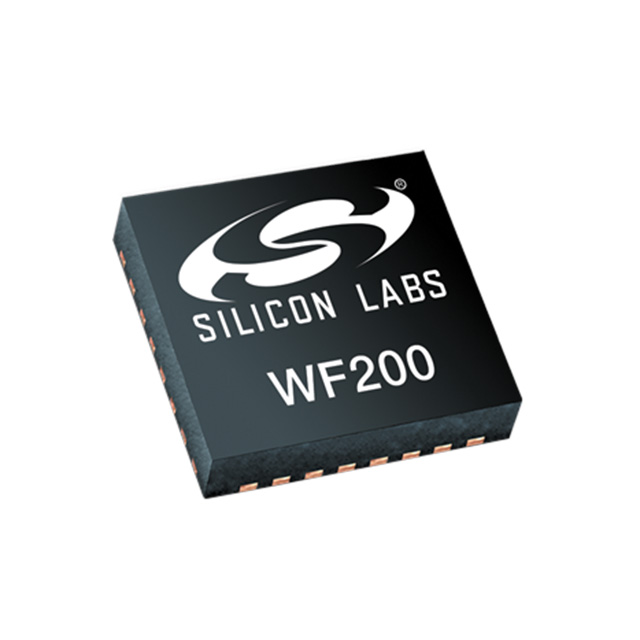

WF200CR

Silicon Labs

IC RF TXRX+MCU WIFI 32QFN

Search across all available documentation for this part.

Silicon Labs

IC RF TXRX+MCU WIFI 32QFN

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Frequency	Package / Case	Data Rate (Max)	Protocol	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Sensitivity	RF Family/Standard	Type	Frequency [Max]	Frequency [Min]	Current - Receiving [Max]	Current - Receiving [Min]	Power - Output	Current - Transmitting [Max]	Current - Transmitting [Min]	Modulation
Silicon Labs WF200C	3.3 V	1.8 V	2.4 GHz	32-VFQFN Exposed Pad	72.2 Mbps	802.11b/g/n	Surface Mount	-40 °C	105 ░C	32-QFN (4x4)	-96.5 dBm	WiFi	TxRx + MCU
Silicon Labs WF200CR	3.3 V	1.8 V	2.4 GHz	32-VFQFN Exposed Pad	72.2 Mbps	802.11b/g/n	Surface Mount	-40 °C	105 ░C	32-QFN (4x4)	-96.5 dBm	WiFi	TxRx + MCU
Silicon Labs WF200SC	3.3 V	1.8 V	2.4 GHz	32-UFQFN Exposed Pad	72.2 Mbps	802.11b/g/n	Surface Mount	-40 °C	105 ░C	32-QFN (4x4)	-96.5 dBm	WiFi	TxRx + MCU
Silicon Labs WF200SD	3.6 V	1.62 V		32-VFQFN Exposed Pad	72.2 Mbps	802.11b/g/n	Surface Mount	-40 °C	105 °C	32-QFN (4x4)	-96.7 dBm	WiFi	TxRx + MCU	2.484 GHz	2.412 GHz	47.6 mA	41.6 mA	17 dBm	108 mA	44.6 mA	DSSS
Silicon Labs WF200SDR	3.6 V	1.62 V		32-VFQFN Exposed Pad	72.2 Mbps	802.11b/g/n	Surface Mount	-40 °C	105 °C	32-QFN (4x4)	-96.7 dBm	WiFi	TxRx + MCU	2.484 GHz	2.412 GHz	47.6 mA	41.6 mA	17 dBm	108 mA	44.6 mA	DSSS

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2500	$ 4.07

General part information

IC RF TxRx + MCU WiFi 802.11b/g/n 2.4GHz 32-VFQFN Exposed Pad
