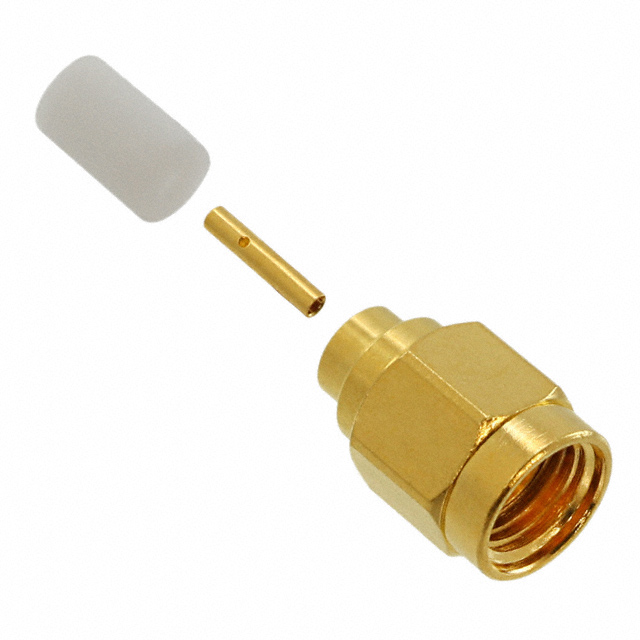

132102RP

Active

Amphenol RF

CONN RPSMA PLUG STR 50OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN RPSMA PLUG STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	132102RP

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	RP-SMA
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	Insulator, Connector, Contact
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

Part	Includes	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Mating Cycles	Mounting Type	Center Contact Plating	Impedance	Contact Termination	Frequency - Max [Max]	Dielectric Material	Number of Ports	Body Material	Center Contact Material	Connector Type	Connector Style	Shield Termination	Housing Color	Body Finish
Amphenol RF 132102RP	Connector Contact Insulator	-65 ░C	165 °C	500 V	500	Free Hanging (In-Line)	Gold	50 Ohms	Solder	18 GHz	Polytetrafluoroethylene (PTFE)	1	Brass	Beryllium Copper	Female Socket Plug	RP-SMA	Solder	Gold	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RP-SMA Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Solder
