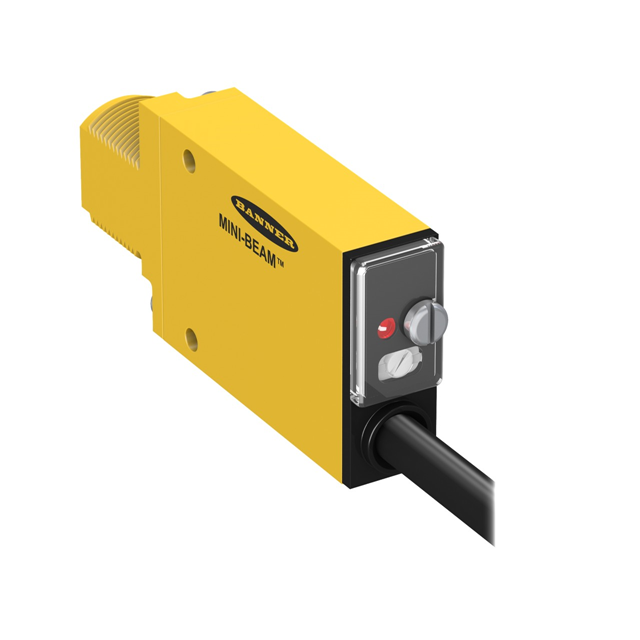

MIAD9CV2

Active

BANNER ENGINEERING

MINI-BEAM NAMUR: CONVERGENTF

Search across all available documentation for this part.

Active

BANNER ENGINEERING

MINI-BEAM NAMUR: CONVERGENTF

Technical Specifications

Parameters and characteristics for this part

Specification	MIAD9CV2

Adjustment Type	Adjustable, 15-Turn Potentiometer
Cable Length	78.74 in
Cable Length	2 m
Connection Method	Cable
Ingress Protection	NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13 IEC IP67
Light Source	RED (650nm)
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Light-On/Dark-On
Sensing Distance	1.693 in
Sensing Distance	43 mm
Sensing Method	Convergent
Voltage - Supply [Max]	15 V
Voltage - Supply [Min]	5 V

Part	Sensing Distance	Sensing Distance	Output Configuration	Connection Method	Sensing Method	Ingress Protection	Light Source	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Cable Length	Cable Length	Adjustment Type
BANNER ENGINEERING MIAD9LVAGQ	78.74 "	2 m	Light-On/Dark-On	Connector	Polarized Retroreflective	NEMA 1 2 3 3S 4 4X 6 12 13 IEC IP67	RED (650nm)	5 V	15 V	-40 °C	70 °C
BANNER ENGINEERING MIAD9CV2	1.693 in	43 mm	Light-On/Dark-On	Cable	Convergent	NEMA 1 2 3 3S 4 4X 6 12 13 IEC IP67	RED (650nm)	5 V	15 V	-40 °C	70 °C	78.74 in	2 m	Adjustable 15-Turn Potentiometer
BANNER ENGINEERING MIAD9DQ	14.961 in	380 mm	Light-On/Dark-On	Connector	Diffuse	NEMA 1 2 3 3S 4 4X 6 12 13 IEC IP67	Infrared	5 V	15 V	-40 °C	70 °C
BANNER ENGINEERING MIAD9FQ			Analog	Connector	Fiber Optic	NEMA 1 2 3 3S 4 4X 6 12 13 IEC IP67	Infrared	5 V	15 V	-40 °C	70 °C
BANNER ENGINEERING MIAD9LVQ	196.85 in	5 m	Light-On/Dark-On	Connector	NonPolarized Retroreflective	NEMA 1 2 3 3S 4 4X 6 12 13 IEC IP67	RED (650nm)	5 V	15 V	-40 °C	70 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 198.00
Newark	Each	1	$ 202.00

General part information

Convergent Optical Sensor 1.693" (43mm) Light-On/Dark-On
