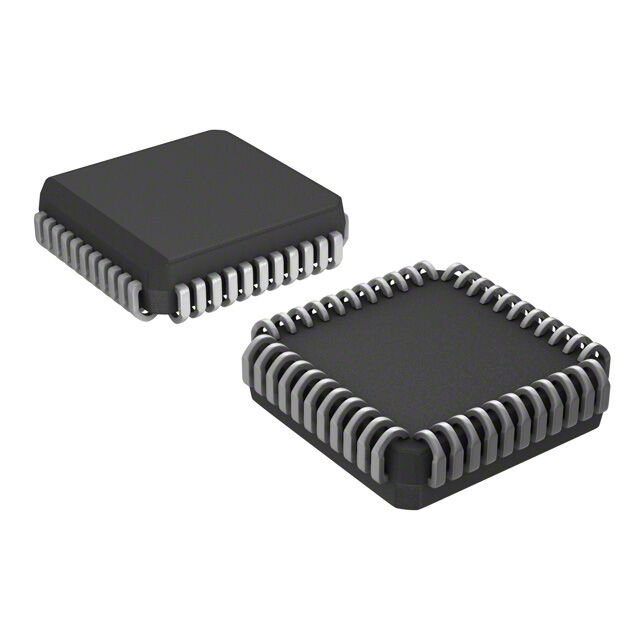

ST16C2450CJ44-F

Active

MaxLinear, Inc.

IC DUART 1.5MBPS 44PLCC

Search across all available documentation for this part.

Active

MaxLinear, Inc.

IC DUART 1.5MBPS 44PLCC

Technical Specifications

Parameters and characteristics for this part

Specification	ST16C2450CJ44-F

Data Rate (Max)	1.5 Mbps
Features	Timer/Counter, Internal Oscillator
FIFO's	1 Byte
Mounting Type	Surface Mount
Number of Channels	2
Package / Case	44-LCC (J-Lead)
Protocol	RS232
Supplier Device Package	44-PLCC (16.59x16.59)
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	2.97 V
With False Start Bit Detection	True
With Modem Control	True

Part	Package / Case	With Modem Control	Data Rate (Max)	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Features	Supplier Device Package	Number of Channels	Protocol	With False Start Bit Detection	FIFO's
MaxLinear, Inc. ST16C2450CJ44-F	44-LCC (J-Lead)		1.5 Mbps	Surface Mount	5.5 V	2.97 V	Internal Oscillator Timer/Counter	44-PLCC (16.59x16.59)	2	RS232		1 Byte

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

UART IC 2, DUART Channel RS232 1 Byte 44-PLCC (16.59x16.59)
