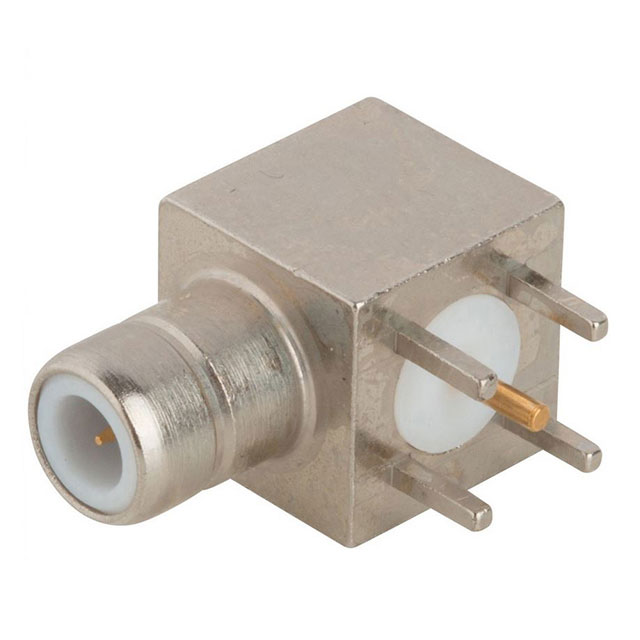

903-585J-71A

Active

Amphenol RF

CONN SMB JACK R/A 75 OHM PCB

Search across all available documentation for this part.

Active

Amphenol RF

CONN SMB JACK R/A 75 OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	903-585J-71A

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	10 GHz
Housing Color	Silver
Impedance	75 Ohms
Insertion Loss	0.6 dB
Mating Cycles	500
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Center Contact Plating	Connector Type	Body Material	Mating Cycles	Mounting Type	Fastening Type	Impedance	Body Finish	Housing Color	Connector Style	Number of Ports	Contact Termination	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Insertion Loss	Frequency - Max [Max]	Dielectric Material
Amphenol RF 903-585J-71A	Gold	Jack Male Pin	Brass	500	Through Hole Right Angle	Snap-On	75 Ohms	Nickel	Silver	SMB	1	Solder	Solder	-65 ░C	165 °C	Brass	0.6 dB	10 GHz	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SMB Connector Jack, Male Pin 75 Ohms Through Hole, Right Angle Solder

Technical documentation and resources

No documents available
