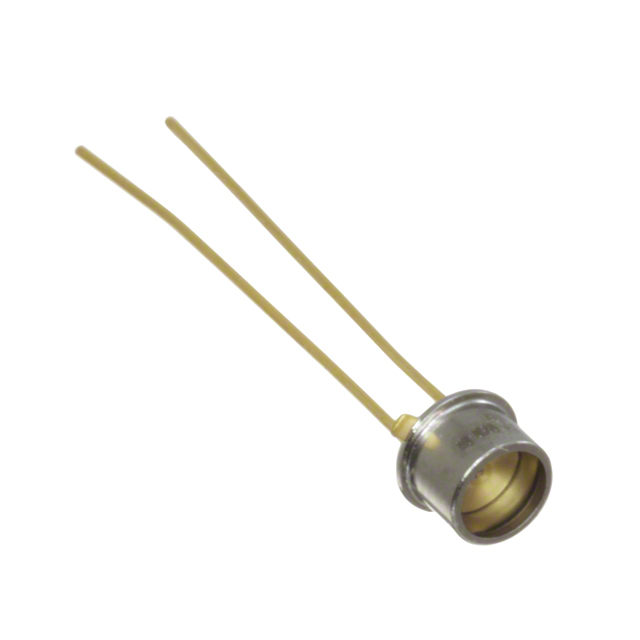

LP-0850-011
ActiveAdvanced Photonix
850NM POINT SOURCE LED ASSY
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LP-0850-011
ActiveAdvanced Photonix
850NM POINT SOURCE LED ASSY
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LP-0850-011 |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 20 mA |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Top View |
| Package / Case | TO-46-2 Metal Can |
| Type | Infrared (IR) |
| Voltage - Forward (Vf) (Typ) | 1.95 V |
| Wavelength | 850 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 120 | $ 14.53 | |
Description
General part information
LP-0850 Series
Infrared (IR) Emitter 850nm 1.95V 20mA TO-46-2 Metal Can
