AD-TNCPSMAP-1

Active

Amphenol RF

PERFORMANCE GRADE TNC PLUG TO SM

Search across all available documentation for this part.

Active

Amphenol RF

PERFORMANCE GRADE TNC PLUG TO SM

Technical Specifications

Parameters and characteristics for this part

Specification	AD-TNCPSMAP-1

Adapter Series	SMA to TNC
Adapter Type	Plug to Plug
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Center Gender	Male to Male
Conversion Type	Between Series
Convert From (Adapter End)	SMA Plug, Male Pin
Convert To (Adapter End)	TNC Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Convert From (Adapter End)	Impedance	Conversion Type	Style	Center Contact Material	Center Contact Plating	Center Gender	Adapter Series	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Adapter Type	Body Material	Convert To (Adapter End)	Mating Cycles	Mounting Type	Frequency - Max [Max]	Mounting Feature	Ingress Protection	Fastening Type
Amphenol RF AD-TNCPSMAP-1	SMA Plug Male Pin	50 Ohms	Between Series	Straight	Brass	Gold	Male to Male	SMA to TNC	Nickel	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Plug to Plug	Brass	Male Pin TNC Plug	500	Free Hanging (In-Line)	18 GHz
Amphenol RF AD-TNCJTNCJ-1	TNC Jack Female Socket	50 Ohms	Same Series	Straight	Beryllium Copper	Gold	Female to Female	TNC to TNC	Nickel	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Jack to Jack	Brass	Female Socket TNC Jack	500		18 GHz	Bulkhead	IP67 - Dust Tight Waterproof
Amphenol RF AD-TNCJQMAP-1	TNC Jack Female Socket	50 Ohms	Between Series	Straight	Beryllium Copper	Gold			Nickel	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Plug to Jack	Brass	Male Pin QMA Plug		Free Hanging (In-Line)	18 GHz			Snap-On Threaded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

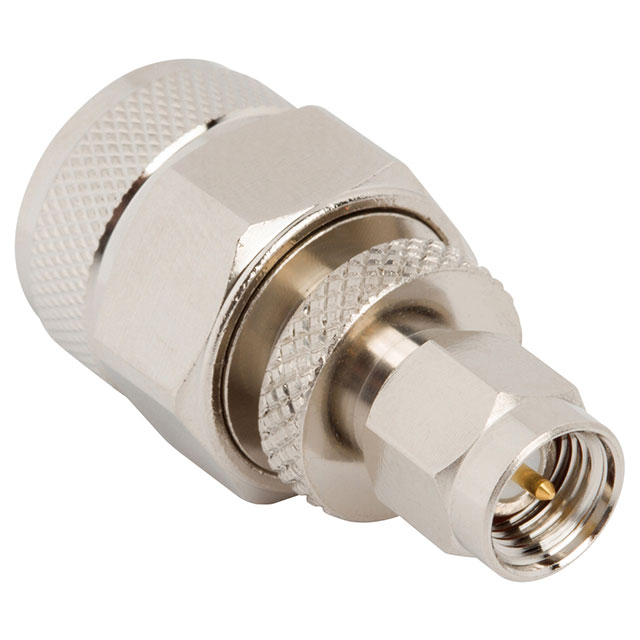

Adapter Coaxial Connector SMA Plug, Male Pin To TNC Plug, Male Pin 50 Ohms
