74ALVCHS162830DGB:

Obsolete

Freescale Semiconductor - NXP

IC ADDRESS DRIVER 3.6V 80TSSOP

Search across all available documentation for this part.

Obsolete

Freescale Semiconductor - NXP

IC ADDRESS DRIVER 3.6V 80TSSOP

Technical Specifications

Parameters and characteristics for this part

Specification	74ALVCHS162830DGB:

Current - Output High, Low [custom]	12 mA
Current - Output High, Low [custom]	12 mA
Logic Type	Address Driver
Mounting Type	Surface Mount
Number of Bits per Element	1:2
Number of Elements	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	3-State

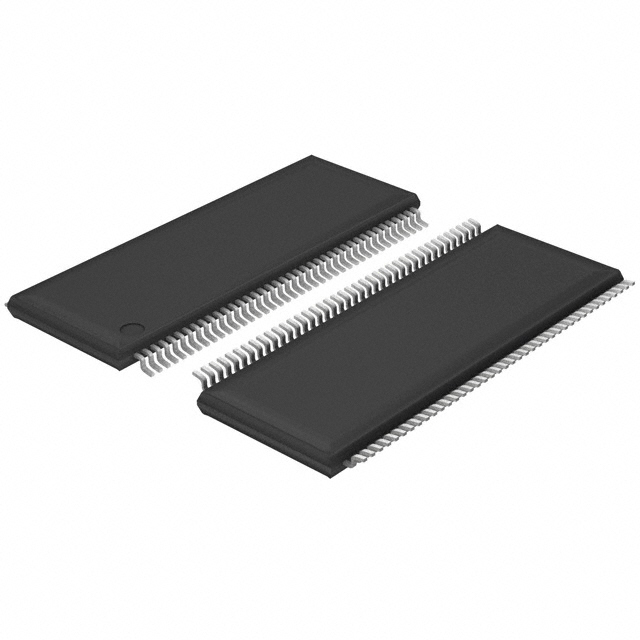

Package / Case	80-TFSOP
Package / Case [x]	0.24 in
Package / Case [y]	6.1 mm
Supplier Device Package	80-TSSOP
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	2.3 V

Part	Mounting Type	Number of Elements	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Voltage - Supply [Min]	Voltage - Supply [Max]	Number of Bits per Element	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case [y]	Package / Case [x]	Logic Type	Supplier Device Package	Output Type
Freescale Semiconductor - NXP 74ALVCHS162830DGB:	Surface Mount	1	12 mA	12 mA	2.3 V	3.6 V	1:2	85 °C	-40 °C	80-TFSOP	6.1 mm	0.24 in	Address Driver	80-TSSOP	3-State
Freescale Semiconductor - NXP 74ALVCHS162830DGB;	Surface Mount	1	12 mA	12 mA	2.3 V	3.6 V	1:2	85 °C	-40 °C	80-TFSOP	6.1 mm	0.24 in	Address Driver	80-TSSOP	3-State

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Address Driver 1 Element 1:2 Bit per Element 3-State Output 80-TSSOP
