Q-7103W0003006I

Active

Amphenol Custom Cable

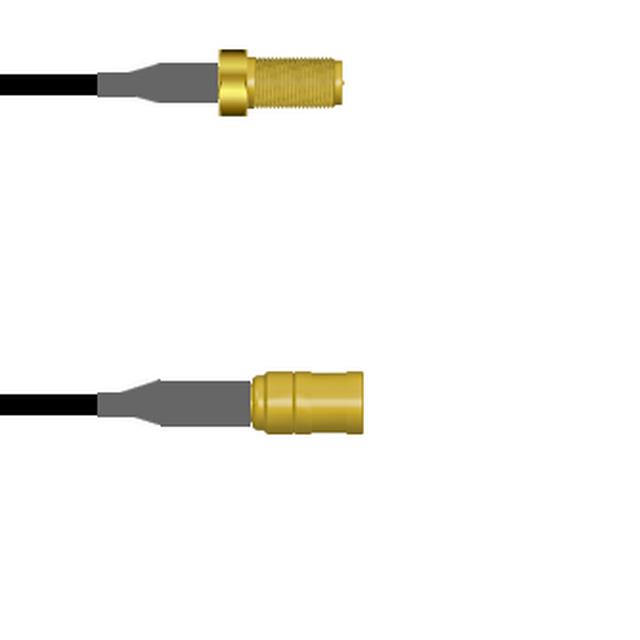

COAX CBL RP-SMA TO SMB 6"

Deep-Dive with AI

Search across all available documentation for this part.

Q-7103W0003006I

Active

Amphenol Custom Cable

COAX CBL RP-SMA TO SMB 6"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-7103W0003006I

1st Connector	RP-SMA Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMB Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-174
Color	Black
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	1 GHz
Length	152.4 mm
Length	6 in
Overall Impedance	50 Ohms
Style	RP-SMA to SMB

Q-7103W0 Series

Part	Cable Impedance	Length	Length	Length	1st Contact Gender	Cable Type	Color	2nd Connector	Features	Connector Impedance	Frequency - Max [Max]	1st Connector	Style	2nd Connector Mounting Type	1st Connector Mounting Type	Overall Impedance	2nd Contact Gender
Amphenol Custom Cable Q-7103W0003060I	50 Ohms	5 ft	1.5 m	5 '	Male	RG-174	Black	SMB Plug	Shielded	50 Ohms	1 GHz	RP-SMA Jack	RP-SMA to SMB	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	Female
Amphenol Custom Cable Q-7103W0005003M	50 Ohms	9.8 '	3 m	118.1 in	Male	RG-316	Copper	SMB Plug	Shielded	50 Ohms	3 GHz	RP-SMA Jack	RP-SMA to SMB	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	Female
Amphenol Custom Cable Q-7103W0003036I	50 Ohms		91.44 cm	36 in	Male	RG-174	Black	SMB Plug	Shielded	50 Ohms	1 GHz	RP-SMA Jack	RP-SMA to SMB	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	Female
Amphenol Custom Cable Q-7103W0003006I	50 Ohms		152.4 mm	6 in	Male	RG-174	Black	SMB Plug	Shielded	50 Ohms	1 GHz	RP-SMA Jack	RP-SMA to SMB	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	Female
Amphenol Custom Cable Q-7103W0003.75M	50 Ohms		750 mm	29.53 "	Male	RG-174	Black	SMB Plug	Shielded	50 Ohms	1 GHz	RP-SMA Jack	RP-SMA to SMB	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	Female
Amphenol Custom Cable Q-7103W0003048I	50 Ohms	4 ft	1200 mm	48 in	Male	RG-174	Black	SMB Plug	Shielded	50 Ohms	1 GHz	RP-SMA Jack	RP-SMA to SMB	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	Female
Amphenol Custom Cable Q-7103W00031.5M	50 Ohms	4.9 ft	1.5 m	59.1 in	Male	RG-174	Black	SMB Plug	Shielded	50 Ohms	1 GHz	RP-SMA Jack	RP-SMA to SMB	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	Female
Amphenol Custom Cable Q-7103W0005060I	50 Ohms	5 ft	1.5 m	5 '	Male	RG-316	Copper	SMB Plug	Shielded	50 Ohms	3 GHz	RP-SMA Jack	RP-SMA to SMB	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	Female
Amphenol Custom Cable Q-7103W0005002M	50 Ohms	6.6 ft	2 m	78.7 in	Male	RG-316	Copper	SMB Plug	Shielded	50 Ohms	3 GHz	RP-SMA Jack	RP-SMA to SMB	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	Female
Amphenol Custom Cable Q-7103W00050.5M	50 Ohms		50 cm	19.69 "	Male	RG-316	Copper	SMB Plug	Shielded	50 Ohms	3 GHz	RP-SMA Jack	RP-SMA to SMB	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	Female

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 57.99
		25	$ 56.86
		50	$ 55.72
		100	$ 54.59
		250	$ 53.46

Description

General part information

Q-7103W0 Series

Cable Assembly Coaxial RP-SMA to SMB RG-174 6.000" (152.40mm)

Documents

Technical documentation and resources

No documents available
