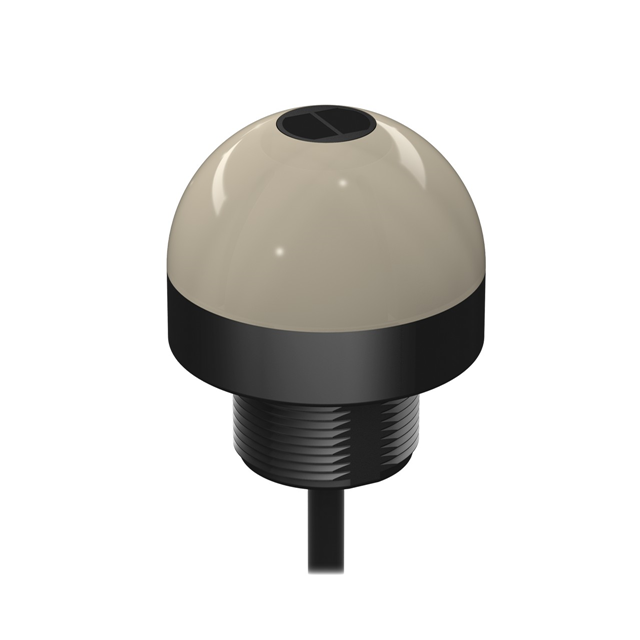

K50 D-SERIES EZ-LIGHT: 1-COLOR FIXED-FIELD SENSOR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
K50APFF50GXDQP
ActiveBANNER ENGINEERING
K50 D-SERIES EZ-LIGHT: 1-COLOR FIXED-FIELD SENSOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | K50APFF50GXDQP |
|---|---|
| Actuator Type | Domed, Round, Button |
| Approval Agency | cULus, CE |
| Circuit | SPST-NO |
| Illumination Type, Color | LED, Green |
| Ingress Protection | IP69K, IP67 |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -40 °C |
| Panel Cutout Dimensions [diameter] | 30 mm |
| Response Time | 3 ms |
| Switch Function | Off-Mom |
| Termination Style | Cable with Connector (M12) |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 12 V |
K50AP Series
| Part | Response Time | Actuator Type | Voltage - Supply [Min] | Voltage - Supply [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Panel Cutout Dimensions [diameter] | Switch Function | Termination Style | Illumination Type, Color | Approval Agency | Mounting Type | Circuit | Ingress Protection | Illumination Type, Color [custom] | Illumination Type, Color [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BANNER ENGINEERING | 50 ms | Button Domed Round | 12 V | 30 VDC | -40 °C | 50 °C | 30 mm | Off-Mom | Connector (M12) | Green LED Yellow | CE cULus | Panel Mount Front | SPST-NO | IP67 IP69K | ||
BANNER ENGINEERING | 3 ms | Button Domed Round | 12 V | 30 VDC | -40 °C | 50 °C | 30 mm | Off-Mom | Connector (M12) | Green LED | CE cULus | Panel Mount Front | SPST-NO | IP67 IP69K | ||
BANNER ENGINEERING | 3 ms | Button Domed Round | 12 V | 30 VDC | -40 °C | 50 °C | 30 mm | Off-Mom | Connector (M12) | Green LED | CE cULus | Panel Mount Front | SPST-NO | IP67 IP69K | ||
BANNER ENGINEERING | 50 ms | Button Domed Round | 12 V | 30 VDC | -40 °C | 50 °C | 30 mm | Off-Mom | Connector (M12) | Green/Red LED | CE cULus | Panel Mount Front | SPST-NO | IP67 IP69K | ||
BANNER ENGINEERING | 3 ms | Button Domed Round | 12 V | 30 VDC | -40 °C | 50 °C | 30 mm | Off-Mom | Connector (M12) | Green/Red LED | CE cULus | Panel Mount Front | SPST-NO | IP67 IP69K | ||
BANNER ENGINEERING | 10 ms | Button Domed Round | 12 V | 30 VDC | -40 °C | 50 °C | 30 mm | Off-Mom | Connector (M12) | Green LED Red Yellow | CE cULus | Panel Mount Front | SPST-NO | IP67 IP69K | ||
BANNER ENGINEERING | 3 ms | Button Domed Round | 12 V | 30 VDC | -40 °C | 50 °C | 30 mm | Off-Mom | Cable with Connector (M12) | Green LED | CE cULus | Panel Mount Front | SPST-NO | IP67 IP69K | ||
BANNER ENGINEERING | 50 ms | Button Domed Round | 12 V | 30 VDC | -40 °C | 50 °C | 30 mm | Off-Mom | Connector (M12) | CE cULus | Panel Mount Front | SPST-NO | IP67 IP69K | Blue/Green | LED | |
BANNER ENGINEERING | 50 ms | Button Domed Round | 12 V | 30 VDC | -40 °C | 50 °C | 30 mm | Off-Mom | Connector (M12) | Green LED Yellow | CE cULus | Panel Mount Front | SPST-NO | IP67 IP69K | ||
BANNER ENGINEERING | 3 ms | Button Domed Round | 12 V | 30 VDC | -40 °C | 50 °C | 30 mm | Off-Mom | Cable with Connector (M12) | Green LED Yellow | CE cULus | Panel Mount Front | SPST-NO | IP67 IP69K |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
K50AP Series
K50 D-SERIES EZ-LIGHT: 1-COLOR FIXED-FIELD SENSOR
