H3CWH-6406G
ActiveAssmann WSW Components
IDC CBL - HHKC64H/AE64G/HHPL64H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | H3CWH-6406G |
|---|---|
| Cable Termination | IDC |
| Connector Type | Socket to Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Features | Polarizing Key (Socket), Polarizing Key (Plug), Flange |
| Length | 152.4 mm |
| Length | 6 " |
| Length | 0.5 ' |
| Number of Positions | 64 |
| Number of Rows | 2 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.1 in |
| Pitch - Connector | 2.54 mm |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.19 | |
| 10 | $ 7.37 | |||
| 25 | $ 6.94 | |||
| 50 | $ 6.76 | |||
| 100 | $ 6.59 | |||
| 250 | $ 5.87 | |||
| 500 | $ 5.52 | |||
| 1000 | $ 4.88 | |||
Description
General part information
H3CWH-64 Series

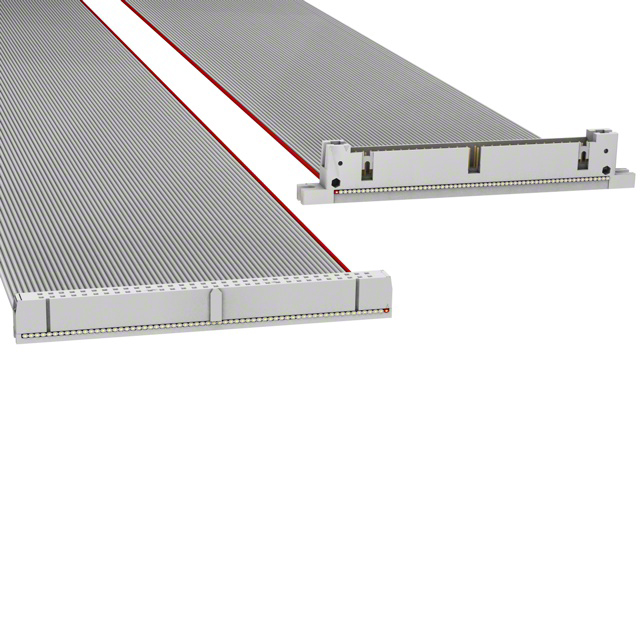

64 Position Cable Assembly Rectangular Socket to Plug 0.500' (152.40mm, 6.00")
