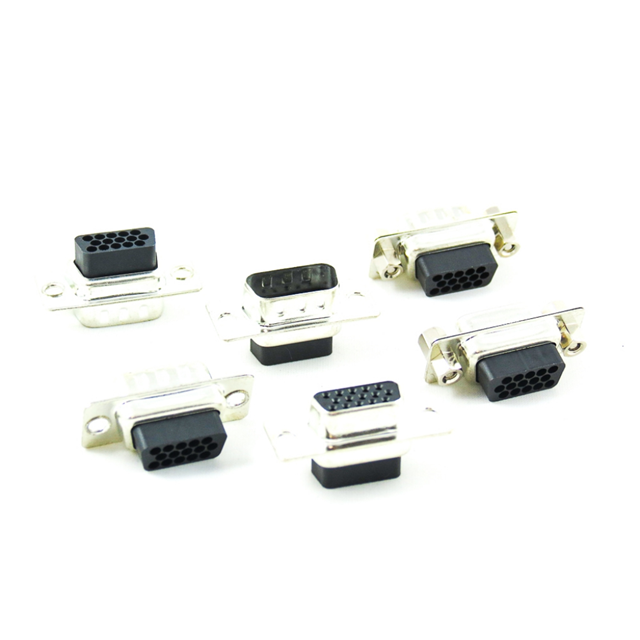

7918-15MTBA
ActiveOupiin
HD D-SUB CRIMP TYPE, 15 PINS, MA
Deep-Dive with AI
Search across all available documentation for this part.
7918-15MTBA
ActiveOupiin
HD D-SUB CRIMP TYPE, 15 PINS, MA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 7918-15MTBA |
|---|---|
| Color | Black |
| Connector Style | High Density, D-Sub |
| Connector Type | Plug for Male Contacts |
| Contact Type | Signal |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Features | Grounding Indents |
| Flange Feature | Housing/Shell (Unthreaded) |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 15 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Steel |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Shell Size, Connector Layout [custom] | High Density |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.29 | |
| 150 | $ 1.20 | |||
| 300 | $ 1.07 | |||
| 450 | $ 0.86 | |||
| 600 | $ 0.69 | |||
Description
General part information
7918-15 Series
Plug for Male Contacts Housing D-Sub, High Density Connector 15 Position
Documents
Technical documentation and resources
No documents available
